300 series cased pump

Overview

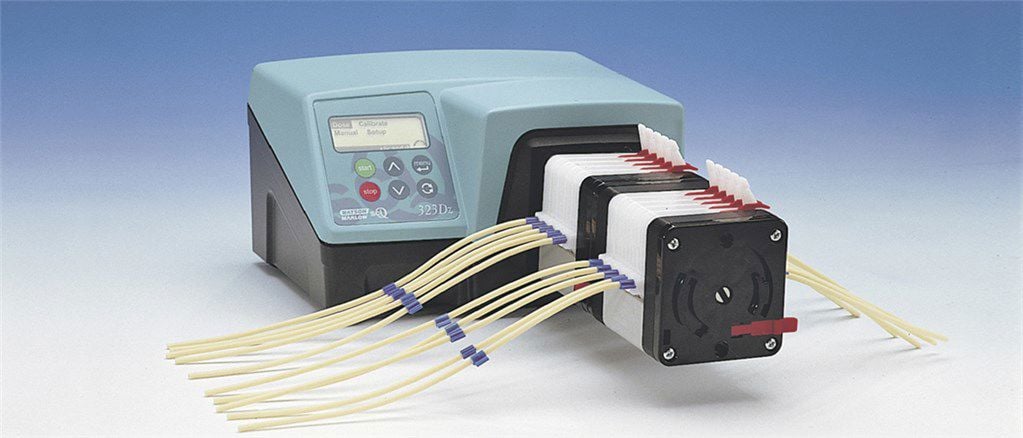

300 series laboratory pumps

300 series laboratory pumps are a benchtop pumping solution with manual, remote, analogue or RS232 control capabilities. Featuring a chemically resistant ABS top and IP31 protection, 323 pumps have a membrane keypad that controls the pump, and a digital LCD to display speed. There are four models with increasing degrees of functionality:

  • 323Du RS232/auto/manual enhanced-control high-flow pumps
  • 323U and 323U analogue-auto and enhanced manual-control pumps
  • 323S high-performance manual control pumps
  • 323E manual control pumps

Pumphead options available as standard (others available on request):

  • 313D and 313D2 three-roller pumpheads for continuous tubing
  • 314D and 314D2 four-roller pumpheads for continuous tubing
  • 314MC four-roller five-channel microcassette pumpheads
  • 318MC eight-roller five-channel microcassette pumpheads
  • 501RL and 501RL2 pumpheads for continuous tubing



Features and benefits

  • Manual or remote 4-20 mA or 0-10 V analogue auto-control or RS232 control commands
  • Up to 133:1 enhanced digital manual speed control
  • Keypad lock prevents tampering or accidental changes
  • MemoDose facility for accurate single-shot dosing
  • Digital TTL inputs for run/stop and direction
  • Instantly reversible
  • Two-year warranty

Technical summary

Min. flow rate 0.002 ml/min
Speed control ratio133:1, 147:1, 200:1, 27:1, 300:1
Operating temperature range5 - 40 °C
Operating temperature range40 - 104 °F
Drive standardsCE, cETLus
Drive ingress ratingIP31
Drive power supply1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA
Compatible tubing bore size 0.13, 0.19, 0.25, 0.38, 0.5, 0.63, 0.76, 0.8, 0.88, 1.02, 1.14, 1.29, 1.42, 1.52, 1.6, 1.65, 1.85, 2.05, 2.29, 2.54, 2.79, 3.2, 4.8, 6.4, 8 mm

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Drive with 313D pumphead performance

313D three-roller flip-top pumpheads for continuous tubing — Tube bore and flow rates (ml/min)
Speed rpm 1.6 mm 3.2 mm 4.8 mm 6.4 mm 8.0 mm
323E/D 15 - 400 4.1 - 110 15 - 400 33 - 880 54 - 1400 75 - 2000
323S/D 3 - 400 0.81 - 110 3.0 - 400 6.6 - 880 11 - 1400 15 - 2000
323U/D 3 - 400 0.81 - 110 3.0 - 400 6.6 - 880 11 - 1400 15 - 2000
323Du/D 3 - 400 0.81 - 110 3.0 - 400 6.6 - 880 11 - 1400 15 - 2000
323Dz/D 2.0 - 400 0.54-110 2.0-400 4.4-880 7.2-1400 10-2000

Drive with 314D pumphead performance

314D four-roller flip-top pumpheads for continuous tubing — Tube bore and flow rates (ml/min)
Speed rpm 1.6 mm 3.2 mm 4.8 mm 6.4 mm 8.0 mm
323Dz/4D 2.0 - 400 0.5 - 100 1.7 - 340 3.8 - 760 6 - 1200 8 - 1600

Drive with 501RL pumphead performance

501RL spring-loaded single-channel pumpheads for continuous 1.6 mm wall thickness tubing — Tube bore and flow rates (ml/min)
Speed rpm 0.5 mm 0.8 mm 1.6 mm 3.2 mm 4.8 mm 6.4 mm 8.0 mm
323S/RL 1.5-220 0.06-9.2 0.18-27 0.84-94 2.8-410 6.1-890 9.5-1400 15-2200
323U/RL 1.5-220 0.06-9.2 0.18-27 0.84-94 2.8-410 6.1-890 9.5-1400 15-2200
323Du/RL 1.5-220 0.06-9.2 0.18-27 0.84-94 2.8-410 6.1-890 9.5-1400 15-2200
323Dz/RL 1.0 - 300 0.04 - 13 1.12 - 37 0.43 - 130 1.9 - 560 4 - 1200 6.4 - 1900 10 - 3000

Drive with MC4 pumphead performance

MC4 four-roller five-channel microcassette pumpheads — Tube bore and flow rates (ml/min)
Tube codes Orange/ Black Orange/ Red Orange/ Blue Orange/ Green Orange/ Yellow Orange/ White Black/ Black Orange/ Orange White/ White Red/ Red
Bore mm 0.13 0.19 0.25 0.38 0.50 0.63 0.76 0.88 1.02 1.14
3.0rpm 0.002 0.01 0.01 0.03 0.05 0.08 0.13 0.17 0.22 0.27
110rpm 0.09 0.3 0.5 0.9 1.7 3.1 4.6 6.4 8.1 9.9
Tube code Grey/ Grey Yellow/ Yellow Yellow/ Blue Blue/ Blue Green/ Green Purple/ Purple Purple/ Black Purple/ Orange Purple/ White
Bore mm 1.29 1.42 1.52 1.65 1.85 2.05 2.29 2.54 2.79
3.0rpm 0.35 0.46 0.52 0.60 0.76 0.90 1.1 1.3 1.4
110rpm 13 17 19 22 28 33 40 47 53

Drive with MC8 pumphead performance

MC8 eight-roller five-channel low-flow microcassette pumpheads — Tube bore and flow rates (ml/min)
Tube codes Orange/ Black Orange/ Red Orange/ Blue Orange/ Green Orange/ Yellow Orange/ White Black/ Black Orange/ Orange White/ White Red/ Red
Bore mm 0.13 0.19 0.25 0.38 0.50 0.63 0.76 0.88 1.02 1.14
323Du/MC8 3.0 rpm 0.002 0.01 0.01 0.02 0.04 0.07 0.11 0.14 0.18 0.24
110 rpm 0.09 0.3 0.5 0.8 1.4 2.6 3.9 5.3 6.6 8.8
323S/D 3.0 rpm 0.002 0.01 0.01 0.03 0.05 0.08 0.13 0.17 0.22 0.27
110 rpm 0.09 0.3 0.5 0.9 1.7 3.1 4.6 6.4 8.1 9.9
Tube code Grey/ Grey Yellow/ Yellow Yellow/ Blue Blue/ Blue Green/ Green Purple/ Purple Purple/ Black Purple/ Orange Purple/ White
Bore mm 1.29 1.42 1.52 1.65 1.85 2.05 2.29 2.54 2.79
323Du/MC8 3.0 rpm 0.27 0.33 0.38 0.46 0.55 0.65 0.79 0.90 0.98
110 rpm 10 12 14 17 20 24 29 33 36
323S/D 3.0 rpm 0.35 0.46 0.52 0.60 0.76 0.90 1.1 1.3 1.4
110 rpm 10 12 14 17 20 24 29 33 36

Specifications

Technical specifications

Drive with 313D pumpheadDrive with 313D2 pumpheadDrive with 314D pumpheadDrive with 501RL pumpheadDrive with 501RL2 pumpheadDrive with MC4 pumpheadDrive with MC8 pumphead
Compatible tubing bore size 1.6, 3.2, 4.8, 6.4, 8 mm1.6, 3.2, 4.8, 6.4 mm1.6, 3.2, 4.8, 6.4, 8 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8 mm1.6, 3.2, 4.8, 6.4, 8 mm0.13, 0.19, 0.25, 0.38, 0.5, 0.63, 0.76, 0.88, 1.02, 1.14, 1.29, 1.42, 1.52, 1.65, 1.85, 2.05, 2.29, 2.54, 2.79 mm0.13, 0.19, 0.25, 0.38, 0.5, 0.63, 0.76, 0.88, 1.02, 1.14, 1.29, 1.42, 1.52, 1.65, 1.85, 2.05, 2.29, 2.54, 2.79 mm
Compatible tubing wall thickness 1.6 mm2.4 mm1.6 mm1.6 mm2.4 mm
Drive control optionsDu, Dz, E, S, U Du, E, S, U Dz Du, Dz, S, U Du, S Du, S
Drive ingress ratingIP31 IP31 IP31 IP31 IP31 IP31 IP31
Drive noise<70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m
Drive power supply1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA 1ph, 100-120 V, 220-240 V 50/60 Hz, 100 VA
Drive standardsCE, cETLus CE, cETLus CE, cETLus CE, cETLus CE, cETLus CE, cETLus CE, cETLus
Pumphead number of channels
Pumphead number of rollers
Speed control ratio133:1, 200:1, 27:1 133:1, 27:1 200:1 147:1, 300:1 147:1 133:1 133:1
Drive humidity80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F 80 % up to 31 °C, 88 °F, decreasing linearly to 50 % at 40 °C, 104 °F
Max. altitude2000 2000 2000 2000 2000 2000 2000
Max. flow rate2000 ml/min2000 ml/min1600 ml/min3000 ml/min53 ml/min53 ml/min
Max. operating speed400 rpm400 rpm400 rpm300 rpm200 rpm400 rpm400 rpm
Min. flow rate 0.06 ml/min0.6 ml/min0.04 ml/min0.002 ml/min0.002 ml/min
Min. operating speed2 rpm3 rpm2 rpm1 rpm1.5 rpm3 rpm3 rpm
Pumphead weight 1.1 kg1.1 kg
Operating temperature range5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C
Operating temperature range40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F
Weight4.7 kg4.7 kg4.7 kg5.6 kg5.6 kg5 kg5 kg
Weight10.4 lbs10.4 lbs10.4 lbs12.3 lbs12.3 lbs11 lbs11 lbs

Drive with 313D pumphead dimensions

Drive with 314D pumphead dimensions

Drive with 501RL pumphead dimensions

Drive with 501RL2 pumphead dimensions

Drive with MC4 pumphead dimensions

Drive with MC8 pumphead dimensions

Materials of construction

Drive caseworkABS (Acrylonitrile butadiene styrene), Powder coated aluminium LM24
Pumphead body assemblyGlass filled polypropylene, IXEF (Polyarylamide), Stainless steel
Pumphead guardPolycarbonate
Pumphead roller assemblyDelrin, MoS2 filled Nylon 6 (Nylatron)
Pumphead rotor assemblyElectroless nickel plated hardened steel, Glass filled Nylon, Mazak, chromium plated
Pumphead trackIXEF (Polyarylamide)
Guide roller assemblyDelrin
Mounting plate assemblyGlass filled Nylon, IXEF (Polyarylamide)
SpindlesElectroless nickel plated hardened steel, Stainless steel
SpringsStainless steel
Tube clamp assemblyAcetal copolymer (Kematal), Glass filled Nylon

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Control

Control options

Functionality 323E 323S 323U 323Du
Manual control
Keypad speed control
15-400rpm 27:1 speed control
3-400rpm 133:1 speed control
1.5-220rpm 147:1 speed control
MemoDose for accurate single shot dosing
Remote control
Run/Stop, direction change via contact closure or 5V TTL
Remote operation of MemoDose (hand/foot switch)
Analogue speed control
Inputs; 0-10V or 4-20mA
RS232 digital communication
Digital serial control
Security
Keypad lock to protect set-up

Literature

Brochures

  1. 323 series pumps (US).pdf
    PDF - 459.7kb
  2. 323 series pumps (EN).pdf
    PDF - 607.4kb

Datasheet

  1. 323SMC4 datasheet (EN).pdf
    PDF - 116.5kb
  2. 323SMC8 datasheet (EN).pdf
    PDF - 116.6kb
  3. 323DuRL datasheet (EN).pdf
    PDF - 202.2kb
  4. 323 DuMC4 datasheet (EN).pdf
    PDF - 171.6kb
  5. 323SMC8 datasheet (EN).pdf
    PDF - 116.6kb
  6. 323DuMC8 datasheet (EN).pdf
    PDF - 171.3kb
  7. 323SRL datasheet (EN).pdf
    PDF - 232.1kb
  8. 323DzRL datasheet (EN).pdf
    PDF - 166.4kb
  9. 323SRL datasheet (EN).pdf
    PDF - 232.1kb
  10. 323URL datasheet (EN).pdf
    PDF - 231.6kb
  11. 323DzD datasheet (EN).pdf
    PDF - 151.9kb
  12. 323URL datasheet (EN).pdf
    PDF - 231.6kb
  13. 323DzRL datasheet (EN).pdf
    PDF - 166.4kb
  14. 323ESUDuD datasheet (EN).pdf
    PDF - 155.7kb
  15. 323DuMC8 datasheet (EN).pdf
    PDF - 171.3kb
  16. 323Dz4D datasheet (EN).pdf
    PDF - 124.5kb
  17. 323ESUDuD datasheet (EN).pdf
    PDF - 155.7kb
  18. 323DuMC4 datasheet (EN).pdf
    PDF - 171.6kb
  19. 323DzD datasheet (EN).pdf
    PDF - 151.9kb
  20. 323SMC4 datasheet (EN).pdf
    PDF - 116.5kb
  21. 323Dz4D datasheet (EN).pdf
    PDF - 124.5kb
  22. 323DuRL datasheet (EN).pdf
    PDF - 202.2kb

Manuals

  1. 323Dz manual (EN).pdf
    PDF - 1.1mb
  2. 323Dz manual (EN).pdf
    PDF - 1.1mb
  3. 323E,S,U,Du manual (EN).pdf
    PDF - 2mb
  4. 323E,S,U,Du manual (EN).pdf
    PDF - 2mb

Order Information

Product codes

Drive with 313D pumphead product codes

Pumps, drives and pumpheads product codes
Description Partcode
323E/D Drive and 313D three-roller pumphead 030.3124.3D0*
323S/D Drive and 313D three-roller pumphead 030.3134.3D0*
323U/D Drive and 313D three-roller pumphead 030.3144.3D0*
323Du/D Drive and 313D three-roller pumphead 030.3154.3D0*
323Dz/D Drive and 313D three-roller pumphead 030.3184.3D0*
323E Drive only 036.3124.000*
323S Drive only 036.3134.000*
323U Drive only 036.3144.000*
323Du Drive only 036.3154.000*
313DW Three-roller pumphead for 1.6mm wall tube 033.3451.000
313X Three-roller extension pumphead for 1.6mm wall tube (maximum five) 033.3431.000

*Replace last 0 with A, E or U for American, European or UK mains supply (American 110V 1ph 60Hz)

If required for use with STA-PURE and Chem-Sure tubing, please contact Watson-Marlow Bredel technical support for drive and pumphead selection

Tubing product codes
Bore/wall (mm) Bioprene Marprene Platinum Silicone PVC Neoprene
0.5 / 1.6 903.0005.016 902.0005.016 913.A005.016
0.8 / 1.6 903.0008.016 902.0008.016 913.A008.016 920.0008.016
1.6 / 1.6 903.0016.016 902.0016.016 913.A016.016 950.0016.016 920.0016.016
3.2 / 1.6 903.0032.016 902.0032.016 913.A032.016 950.0032.016 920.0032.016
4.8 / 1.6 903.0048.016 902.0048.016 913.A048.016 950.0048.016 920.0048.016
6.4 / 1.6 903.0064.016 902.0064.016 913.A064.016 950.0064.016 920.0064.016
8.0 / 1.6 903.0080.016 902.0080.016 913.A080.016 950.0080.016 920.0080.016
Bore/wall (mm) STA-PURE® STA-PURE®Series PCS STA-PURE®Series PFL Chem-Sure® Fluorel®
0.8 / 1.6 970.0008.016
1.6 / 1.6 960.0016.016 961.0016.016 966.0016.016 965.0016.016 970.0016.016
3.2/ 1.6 960.0032.016 961.0032.016 966.0032.016 965.0032.016 970.0032.016
4.8 / 1.6 960.0048.016 961.0048.016 966.0048.016 965.0048.016 970.0048.016
6.4 / 1.6 960.0064.016 961.0064.016 966.0064.016 965.0064.016 970.0064.016
8.0 / 1.6 960.0080.016 961.0080.016 966.0080.016 965.0080.016 970.0080.016

Drive with 313D2 pumphead product codes

Drives and pumpheads product codes
Description Partcode
323E Drive only 036.3124.000*
323S Drive only 036.3134.000*
323U Drive only 036.3144.000*
323Du Drive only 036.3154.000*
313DW2 Three-roller pumphead for 2.4 mm wall tube 033.3551.000

*Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1 ph 60 Hz)

If required for use with STA-PURE and Chem-Sure tubing, please contact Watson-Marlow Bredel technical support for drive and pumphead selection

Tubing product codes
Bore/wall (mm) Bioprene Marprene Platinum Silicone
1.6 / 2.4 903.0016.024 902.0016.024 913.A016.024
3.2 / 2.4 903.0032.024 902.0032.024 913.A032.024
4.8 / 2.4 903.0048.024 902.0048.024 913.A048.024
6.4 / 2.4 903.0064.024 902.0064.024 913.A064.024
8.0 / 2.4 903.0080.024 902.0080.024 913.A080.024
Bore/wall (mm) STA-PURE® STA-PURE®Series PCS STA-PURE®Series PFL Chem-Sure®
1.6 / 2.4 960.0016.024 961.0016.024 966.0016.024 965.0016.024
3.2 / 2.4 960.0032.024 961.0032.024 966.0032.024 965.0032.024
4.8 / 2.4 960.0048.024 961.0048.024 966.0048.024 965.0048.024
6.4 / 2.4 960.0064.024 961.0064.024 966.0064.024 965.0064.024
8.0 / 2.4 960.0080.024 965.0080.024

Drive with 314D pumphead product codes

Drives and pumpheads product codes
Description Partcode
323Dz Drive only 036.3184.000*
314DW 4 roller extension pumphead for 1.6 mm wall tube 033.4451.000
314X 4 roller extension pumphead for 1.6 mm wall tube (maximum five) 033.4431.000

*Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1 ph 60 Hz)

Tubing product codes
Bore/wall (mm) Bioprene Marprene Platinum Silicone PVC Neoprene
0.5 / 1.6 903.0005.016 902.0005.016 913.A005.016
0.8 / 1.6 903.0008.016 902.0008.016 913.A008.016 920.0008.016
1.6 / 1.6 903.0016.016 902.0016.016 913.A016.016 950.0016.016 920.0016.016
3.2 / 1.6 903.0032.016 902.0032.016 913.A032.016 950.0032.016 920.0032.016
4.8 / 1.6 903.0048.016 902.0048.016 913.A048.016 950.0048.016 920.0048.016
6.4 / 1.6 903.0064.016 902.0064.016 913.A064.016 950.0064.016 920.0064.016
8.0 / 1.6 903.0080.016 902.0080.016 913.A080.016 950.0080.016 920.0080.016
Bore/wall (mm) STA-PURE® STA-PURE®Series PCS STA-PURE®Series PFL Chem-Sure® Fluorel®
0.8 / 1.6 970.0008.016
1.6 / 1.6 960.0016.016 961.0016.016 966.0016.016 965.0016.016 970.0016.016
3.2/ 1.6 960.0032.016 961.0032.016 966.0032.016 965.0032.016 970.0032.016
4.8 / 1.6 960.0048.016 961.0048.016 966.0048.016 965.0048.016 970.0048.016
6.4 / 1.6 960.0064.016 961.0064.016 966.0064.016 965.0064.016 970.0064.016
8.0 / 1.6 960.0080.016 961.0080.016 966.0080.016 965.0080.016 970.0080.016

Drive with 501RL pumphead product codes

Pumps, drives and pumpheads product codes
Description Partcode
323Dz/RL drive + 501RL pumphead for 1.6 mm wall tube 030.3183.RL0*
323S/RL drive + 501RL pumphead for 1.6 mm wall tube 030.3132.RL0*
323Du/RL drive + 501RL pumphead for 1.6 mm wall tube 030.3152.RL0*
323U/RL drive + 501RL pumphead for 1.6 mm wall tube 030.3142.RL0*
323S drive only 036.3132.000*
323U drive only 036.3152.000*
501RL pumphead for 1.6mm wall tube 053.0001.L00

* Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1 ph 60 Hz)
If required for use with STA-PURE and Chem-Sure tubing, please contact Watson-Marlow Bredel technical support for drive and pumphead selection

Tubing product codes
Bore/wall (mm) Bioprene Marprene Platinum Silicone PVC Neoprene
0.5 / 1.6 903.0005.016 902.0005.016 913.A005.016
0.8 / 1.6 903.0008.016 902.0008.016 913.A008.016 920.0008.016
1.6 / 1.6 903.0016.016 902.0016.016 913.A016.016 950.0016.016 920.0016.016
3.2 / 1.6 903.0032.016 902.0032.016 913.A032.016 950.0032.016 920.0032.016
4.8 / 1.6 903.0048.016 902.0048.016 913.A048.016 950.0048.016 920.0048.016
6.4 / 1.6 903.0064.016 902.0064.016 913.A064.016 950.0064.016 920.0064.016
8.0 / 1.6 903.0080.016 902.0080.016 913.A080.016 950.0080.016 920.0080.016
Bore/wall (mm) STA-PURE® STA-PURE®Series PCS STA-PURE®Series PFL Chem-Sure® Fluorel®
0.8 / 1.6 970.0008.016
1.6 / 1.6 960.0016.016 961.0016.016 966.0016.016 965.0016.016 970.0016.016
3.2/ 1.6 960.0032.016 961.0032.016 966.0032.016 965.0032.016 970.0032.016
4.8 / 1.6 960.0048.016 961.0048.016 966.0048.016 965.0048.016 970.0048.016
6.4 / 1.6 960.0064.016 961.0064.016 966.0064.016 965.0064.016 970.0064.016
8.0 / 1.6 960.0080.016 961.0080.016 966.0080.016 965.0080.016 970.0080.016

Drive with 501RL2 pumphead product codes

Pumpheads product codes
Description Partcode
501RL2 pumphead for 2.4 mm wall tube 053.0001.L20

* Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1ph 60 Hz)
If required for use with STA-PURE and Chem-Sure tubing, please contact Watson-Marlow Bredel technical support for drive and pumphead selection

Tubing product codes
Bore/wall (mm) Bioprene Marprene Platinum Silicone
1.6 / 2.4 903.0016.024 902.0016.024 913.A016.024
3.2 / 2.4 903.0032.024 902.0032.024 913.A032.024
4.8 / 2.4 903.0048.024 902.0048.024 913.A048.024
6.4 / 2.4 903.0064.024 902.0064.024 913.A064.024
8.0 / 2.4 903.0080.024 902.0080.024 913.A080.024
Bore/wall (mm) STA-PURE® STA-PURE®Series PCS STA-PURE®Series PFL Chem-Sure®
1.6 / 2.4 960.0016.024 961.0016.024 966.0016.024 965.0016.024
3.2 / 2.4 960.0032.024 961.0032.024 966.0032.024 965.0032.024
4.8 / 2.4 960.0048.024 961.0048.024 966.0048.024 965.0048.024
6.4 / 2.4 960.0064.024 961.0064.024 966.0064.024 965.0064.024
8.0 / 2.4 960.0080.024 965.0080.024

Drive with MC4 pumphead product codes

Drives and pumpheads product codes
Description Partcode
323S drive only 036.3134.000*
323Du drive only 036.3154.000*
314MC four-roller five-channel pumphead 033.6453.000
314MCX four-roller five-channel extension pumphead 033.6454.000

*Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1 ph 60 Hz)

Tubing product codes
Colour code Tube (mm) Marprene* PVC Silicone
Orange/black 0.13 981.0013.000
Orange/red 0.19 981.0019.000
Orange/blue 0.25 979.0025.000 981.0025.000
Orange/green 0.38 979.0038.000 981.0038.000
Orange/yellow 0.50 979.0050.000 981.0050.000
Orange/white 0.63 979.0063.000 981.0063.000 983.0063.000
Black/black 0.76 979.0076.000 981.0076.000 983.0076.000
Orange/orange 0.88 979.0088.000 981.0088.000 983.0088.000
White/white 1.02 979.0102.000 981.0102.000 983.0102.000
Red/red 1.14 979.0114.000 981.0114.000 983.0114.000
Grey/grey 1.29 979.0129.000 981.0129.000 983.0129.000
Yellow/yellow 1.42 979.0142.000 981.0142.000 983.0142.000
Yellow/blue 1.52 979.0152.000 981.0152.000 983.0152.000
Blue/blue 1.65 979.0165.000 981.0165.000 983.0165.000
Green/green 1.85 979.0185.000 981.0185.000 983.0185.000
Purple/purple 2.05 979.0205.000 981.0205.000 983.0205.000
Purple/black 2.29 979.0229.000 981.0229.000 983.0229.000
Purple/orange 2.54 979.0254.000 981.0254.000 983.0254.000
Purple/white 2.79 979.0279.000 981.0279.000 983.0279.000

* For autoclavable Marprene tubing, please replace last “0” with “*” - for example 979.0238.00*

Drive with MC8 pumphead product codes

Drives and pumpheads product codes
Description Partcode
323S Drive only 036.3134.000*
318MC eight roller five channel pumphead 033.6853.000
318MCX eight roller five channel extension pumphead 033.6854.000
323Du drive only 036.3154.000*

*Replace last 0 with A, E or U for American, European or UK mains supply (American 110 V 1 ph 60 Hz)

Tubing product codes
Colour code Tube (mm) Marprene* PVC Silicone
Orange/black 0.13 981.0013.000
Orange/red 0.19 981.0019.000
Orange/blue 0.25 979.0025.000 981.0025.000
Orange/green 0.38 979.0038.000 981.0038.000
Orange/yellow 0.50 979.0050.000 981.0050.000
Orange/white 0.63 979.0063.000 981.0063.000 983.0063.000
Black/black 0.76 979.0076.000 981.0076.000 983.0076.000
Orange/orange 0.88 979.0088.000 981.0088.000 983.0088.000
White/white 1.02 979.0102.000 981.0102.000 983.0102.000
Red/red 1.14 979.0114.000 981.0114.000 983.0114.000
Grey/grey 1.29 979.0129.000 981.0129.000 983.0129.000
Yellow/yellow 1.42 979.0142.000 981.0142.000 983.0142.000
Yellow/blue 1.52 979.0152.000 981.0152.000 983.0152.000
Blue/blue 1.65 979.0165.000 981.0165.000 983.0165.000
Green/green 1.85 979.0185.000 981.0185.000 983.0185.000
Purple/purple 2.05 979.0205.000 981.0205.000 983.0205.000
Purple/black 2.29 979.0229.000 981.0229.000 983.0229.000
Purple/orange 2.54 979.0254.000 981.0254.000 983.0254.000
Purple/white 2.79 979.0279.000 981.0279.000 983.0279.000

* For autoclavable Marprene tubing, please replace last “0” with “*” - for example 979.0238.00*

Recommended Products

  1. 300 series pumpheads

    300 series pumpheads

    Iconic flip-top pumps for medium flows to 2,000 ml/min. Extendable up to 6 channels.

    Pumpheads

  2. Bioprene - Thermoplastic tubing

    Bioprene - Thermoplastic tubing

    Thermoplastic tubing with long peristaltic life and low permeability. 5 ºC to 80 ºC (23 ºF to 176 ºF).

    Tubing - peristaltic

  3. Marprene tubing

    Marprene tubing

    Thermoplastic elastomer tubing especially resistant to oxidizing agents. 5 ºC to 80 ºC (23 ºF to 176 ºF) to 7 bar (100 psi).

    Tubing - peristaltic

  4. Pumpsil tubing

    Pumpsil tubing

    Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -20 ºC to 80 ºC (-4 ºF to 176 ºF).

    Tubing - peristaltic

Related Products

  1. 100 series cased pump

    100 series cased pump

    Flow rates to 190 ml/min (3.04 USGPH) and pressures up to 2 bar (30 psi). Speed control up to 10,000:1.

    Pumps - cased pumps

  2. 200 series cased pump

    200 series cased pump

    Flow rates from 6 μl/min to 22.0 ml/min. Multi-channel cassette pumps with up to 32 channels

    Pumps - cased pumps

  3. 530 process pumps

    530 process pumps

    Flow rates to 3.5 L/min (55 USGPH) and pressures up to 7 bar (100 psi). Precise 2,200:1 speed control range.

    Pumps - cased pumps

  4. 630 mid-flow process pumps

    630 mid-flow process pumps

    Flow rates to 18 L/min (4.76 USGPM) and pressures up to 4 bar (60 psi). Precise 2,650:1 speed control range.

    Pumps - cased pumps

  5. 730 process pumps

    730 process pumps

    Flow rates to 33 L/min (8.8 USGPM) and pressures up to 2 bar (30 psi). Precise 3,600:1 speed control range.

    Pumps - cased pumps

Our process pump specialists are here to help you succeed.

To order a product or ask a question

Contact our experts
