Pumps - cased pumps

600 series cased pump

Overview

630 series process pumps

630 series process pumps offer four drive options, colour display and intuitive menu structures that provide visual status indication and minimal key presses.

Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options.

Pumphead options available as standard (others available on request):

  • 620R pumphead for continuous tubing
  • 620RE and 620RE4 pumpheads for tube elements
  • 620L and 620LG twin channel low pulse pumpheads

Features and benefits

  • Colour display and intuitive menu structures provide visual status indication and minimal key presses
  • Flow rates from 0.001 L/min (0.0002 USGPM) to 18 L/min (4.76 USGPM) depending on model and pumphead/tubing options
  • 620R, 620RE, 620RE4, 620L and 620LG pumpheads available
  • 2,650:1 speed control range from 0.1 to 265 rpm in 0.1 rpm increments
  • Keypad incorporates 3-level security PIN lock
  • IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps available
  • Dual voltage, 115 V/230 V 50/60 Hz
  • Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options

Technical summary

Max. flow rate 18 L/min
Min. flow rate0.001 L/min
Max. flow rate301 USGPH
Min. flow rate0.02 USGPH
Drive speed control ratio2650:1
Operating temperature range5 - 40 °C
Operating temperature range41 - 104 °F
Control typesEtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA
Drive standardsCE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements)
Drive ingress ratingIP31, IP66, NEMA 2, NEMA 4X
Drive power supply100-120 V/200-240 V 1ph 50/60 Hz 250 VA
Compatible tubing bore size 6.4, 8, 9.6, 12, 12.7, 15.9, 16, 17 mm

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Drive with 620R Pumphead performance

620R twin-roller pumpheads for continuous 3.2 mm wall thickness tubing — Tube bore and flow rates — L/min (USGPH)
Tube material Speed 6.4mm 9.6mm 12.7mm 15.9mm
Marprene® TL, Bioprene® TL 0.1-265rpm 0.001–3.4 (0.02– 53.9) 0.003–6.6 (0.05– 105) 0.004–11 (0.06– 174) 0.005–12 (0.08– 190)
Pumpsil® 0.1-265rpm 0.001–3.2 (0.02– 50.7) 0.003–7.2 (0.05– 114) 0.004–11 (0.06– 174) 0.01–15 (0.16– 238)
GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1-265rpm 0.001–3.2 (0.02– 50.7) 0.003–6.6 (0.05– 105) 0.004–11 (0.06– 174) 0.006–16 (0.1– 254)

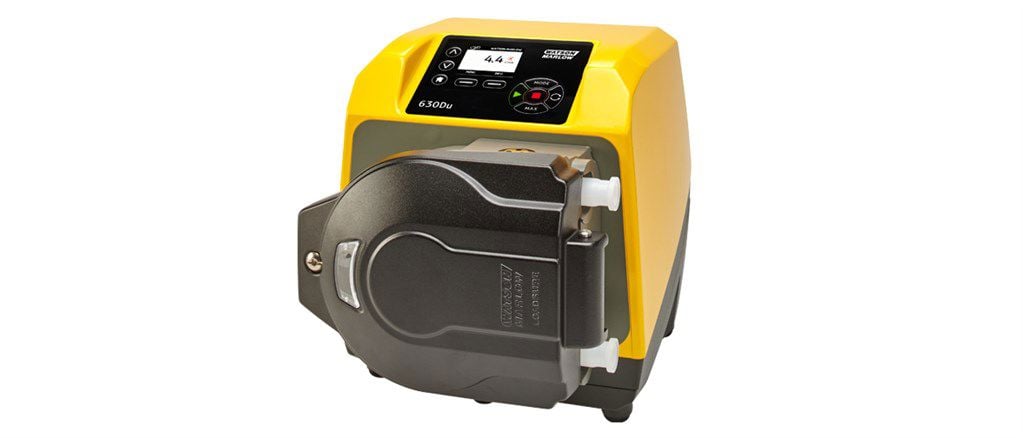

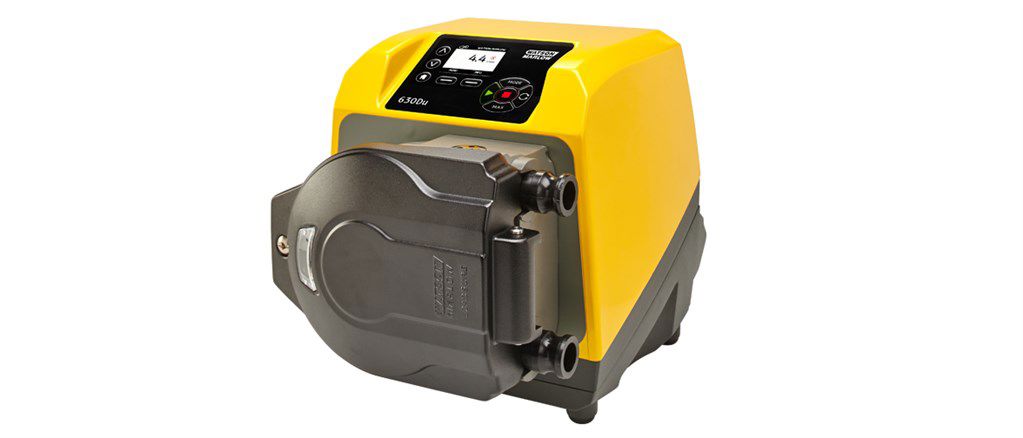

Drive with 620RE Pumphead performance

620RE two-roller low-pulse pumpheads for LoadSure elements — Tube bore and flow rates — L/min (USGPH)
Tube material Speed 12mm 17mm
Marprene® TM, Bioprene® TM 0.1-265rpm 0.004–11 (0.06– 174) 0.01–16 (0.16– 254)
Marprene® TL, Bioprene® TL 0.1-265rpm 0.004–11 (0.06– 174) 0.01–18 (0.16– 285)
Pumpsil® 0.1-265rpm 0.004–10 (0.06– 159) 0.01–16 (0.16– 254)
GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1-265rpm 0.004–11 (0.06– 174) 0.01–19 (0.16– 301)

Drive with 620RE4 Pumphead performance

620RE4 four-roller low-pulse pumpheads for LoadSure elements — Tube bore and flow rates — L/min (USGPH)
Tube material Speed 12mm 17mm
Marprene® TM, Bioprene® TM 0.1-265rpm 0.003–8.3 (0.05–132) 0.004–11 (0.06–174)
Marprene® TL, Bioprene® TL 0.1-265rpm 0.003–8.3 (0.05–132) 0.005–12 (0.08–190)
Pumpsil® 0.1-265rpm 0.003–8.7 (0.05–138) 0.004–11 (0.06–174)
GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1-265rpm 0.003–9 (0.05–143) 0.005–13 (0.08–206)

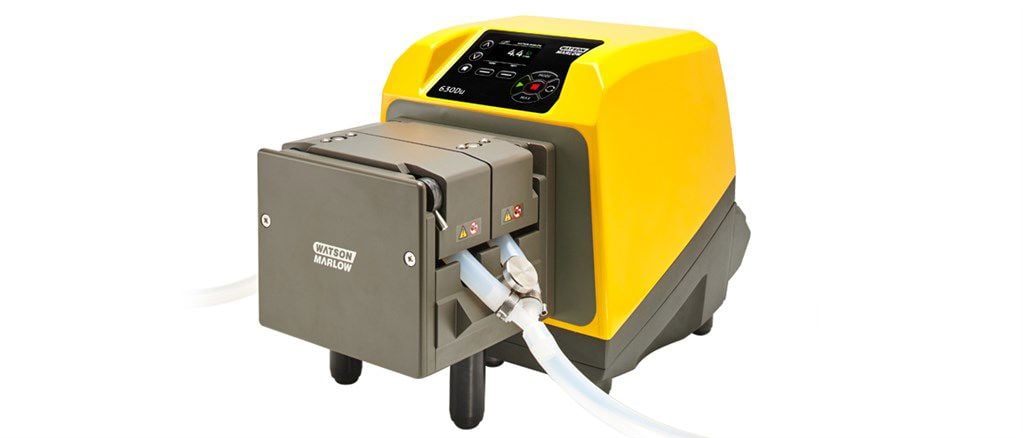

Drive with 620L Pumphead performance

620L twin-channel low-pulse pumpheads for LoadSure elements — Tube bore and flow rates — L/ min (USGPH)
Tube material Speed Y element tubing Continuous tubing (flow per channel - max of 2 channels)
8.0mm 12.0mm 16.0mm 8.0mm 12.0mm 16.0mm
Pumpsil® 0.1-265rpm 0.002–4.4 (0.03–69.7) 0.003–8.5 (0.05–135) 0.005–11.5 (0.08–182) 0.001–2.2 (0.02–34.9) 0.002–4.3 (0.03–68.2) 0.003–5.8 (0.05–91.9)
Marprene® , Bioprene® 0.1-265rpm 0.002–4.5 (0.03–71.3) 0.003–8.0 (0.05–127) 0.005–11.3 (0.08–179) 0.001–2.3 (0.02–36.5) 0.002–4.0 (0.03–63.4) 0.003–5.7 (0.05–90.3)
Neoprene 0.1-265rpm 0.002–4.6 (0.03–72.9) 0.003–7.7 (0.05–122) 0.005–13.3 (0.08–211) 0.001–2.3 (0.02–36.5) 0.002–3.9 (0.03–61.8) 0.003–6.7 (0.05–106)
GORE® STA-PURE® Pump Tubing Series PFL, GORE® STA-PURE® Pump Tubing Series PCS (620LG pumphead only) 0.1-265rpm 0.002–5.2 (0.03–82.4) 0.003–9.0 (0.05–143) 0.005–12.4 (0.08–197) 0.001–2.6 (0.02–41.2) 0.002–4.5 (0.03–71.3) 0.003–6.7 (0.05–106)

Drive with 620LG Pumphead performance

620LG twin-channel low-pulse pumpheads for GORE® STA-PURE LoadSure elements — Tube bore and flow rates — L/ min (USGPH)
Tube material Speed Y element tubing Continuous tubing (flow per channel - max of 2 channels)
8.0mm 12.0mm 16.0mm 8.0mm 12.0mm 16.0mm
GORE® STA-PURE® Pump Tubing Series PFL, GORE® STA-PURE® Pump Tubing Series PCS (620LG pumphead only) 0.1-265rpm 0.002–5.2 (0.03–82.4) 0.003–9.0 (0.05–143) 0.005–12.4 (0.08–197) 0.001–2.6 (0.02–41.2) 0.002–4.5 (0.03–71.3) 0.003–6.7 (0.05–106)

Specifications

Technical specifications

Drive with 620R PumpheadDrive with 620RE PumpheadDrive with 620RE4 PumpheadDrive with 620L PumpheadDrive with 620LG Pumphead
Compatible tubing bore size 6.4, 9.6, 12.7, 15.9 mm12, 17 mm12, 17 mm8, 12, 16 mm8, 12, 16 mm
Drive control optionsBp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, En, EnN, Pn, PnN Bp, BpN, Du, DuN, En, EnN, Pn, PnN
Drive ingress ratingIP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X
Drive noise<70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m
Drive power supply100-120 V/200-240 V 1ph 50/60 Hz 250 VA 100-120 V/200-240 V 1ph 50/60 Hz 250 VA 100-120 V/200-240 V 1ph 50/60 Hz 250 VA 100-120 V/200-240 V 1ph 50/60 Hz 250 VA 100-120 V/200-240 V 1ph 50/60 Hz 250 VA
Drive speed control ratio2650:1 2650:1 2650:1 2650:1 2650:1
Drive speed 0.1 - 265 rpm0.1 - 265 rpm0.1 - 265 rpm0.1 - 265 rpm0.1 - 265 rpm
Drive standardsCE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements) CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements) CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements) CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements) CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements)
Drive torque rating6Nm continuous duty 6Nm continuous duty 6Nm continuous duty 6Nm continuous duty 6Nm continuous duty
Drive weight 16.5, 17.4 kg16.5, 17.4 kg16.5, 17.4 kg16.5, 17.4 kg16.5, 17.4 kg
Drive weight 36.4, 38.5 lbs36.4, 38.5 lbs36.4, 38.5 lbs36.4, 38.5 lbs36.4, 38.5 lbs
Pumphead number of channels
Pumphead number of rollers
Control typesEtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA
NEMA module weight0.9 kg0.9 kg0.9 kg0.9 kg0.9 kg
NEMA module weight2 lbs2 lbs2 lbs2 lbs2 lbs
Torque rating6 Nm continuous duty 6 Nm continuous duty 6 Nm continuous duty 6 Nm continuous duty 6 Nm continuous duty
Drive humidity(Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Max. altitude2000 2000 2000 2000 2000
Max. flow rate 16 L/min18 L/min13 L/min13.3 L/min13.3 L/min
Max. flow rate254 USGPH301 USGPH206 USGPH211 USGPH211 USGPH
Max. flow rate4.76 USGPM4.76 USGPM4.76 USGPM4.76 USGPM4.76 USGPM
Min. flow rate0.001 L/min0.004 L/min0.003 L/min0.002 L/min0.002 L/min
Min. flow rate0.02 USGPH0.06 USGPH0.05 USGPH0.03 USGPH0.03 USGPH
Min. flow rate0.0002 USGPM0.0002 USGPM0.0002 USGPM0.0002 USGPM0.0002 USGPM
Operating temperature range5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C
Operating temperature range41 - 104 °F41 - 104 °F41 - 104 °F41 - 104 °F41 - 104 °F
Weight19.6 - 20.5 kg19.6 - 20.5 kg20.1 - 21 kg24.3 - 25.2 kg24.3 - 25.2 kg
Weight43.2 - 45.2 lbs43.2 - 45.2 lbs44.3 - 46.3 lbs53.6 - 55.6 lbs53.6 - 55.6 lbs

Drive with 620R Pumphead dimensions

Drive with 620RE Pumphead dimensions

Drive with 620RE4 Pumphead dimensions

Drive with 620L Pumphead dimensions

Drive with 620LG Pumphead dimensions

Materials of construction

Drive caseworkPressure die-cast aluminium LM24, Pressure die-cast aluminium LM6
Drive casework coatingExterior grade polyester powder coat
Drive shaftStainless steel 440C
Drive keypad/HMIPolyester
Drive rear blanking plateStainless steel 316
Pumphead body assemblyPolyester epoxy powder
Pumphead guardAlocrom pre-treatment, Exterior grade polyester powder coat, Pressure die-cast aluminium LM24
Pumphead roller assemblyFortron 1140L4 (PPS), MoS2 filled Nylon 6 (Nylatron), Stainless steel 303, Stainless steel 316
Pumphead rotor assemblyAluminium alloy HE30, Dupont Hytrel G5544, Fortron 1140L4 (PPS)
Pumphead trackAluminium alloy NS4 anodised, Powder coated aluminium LM24
Guide roller assemblyMoS2 filled Nylon 6 (Nylatron), Stainless steel 303, Stainless steel 316
Pumphead front/back platesAluminium alloy HS30
SpindlesStainless steel 303S31
Switch-plateABS PA-765
Tube clamp assemblyAluminium alloy HE30, Polypropylene

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Control

Control options

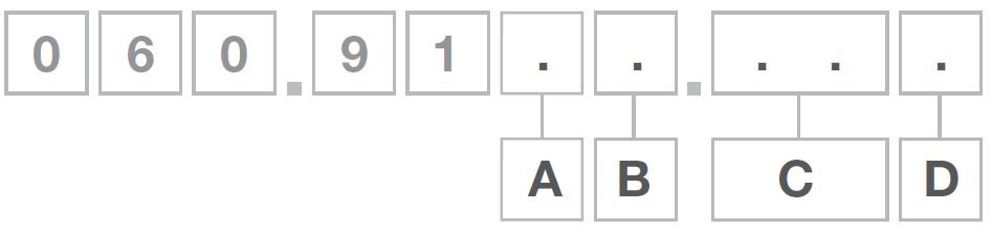

Key to pump drive models
630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
Standard Standard IP66 / NEMA 4X Universal Universal IP66 / NEMA 4X Digital Universal Digital Universal IP66 / NEMA 4X Bus Pump / Profibus Bus Pump / Profibus IP66 / NEMA 4X Universal SCADA / IP66 / NEMA 4X Digital Universal SCADA / IP66 / NEMA 4X EtherNet/IP EtherNet/ IP / IP66 / NEMA 4X PROFINET® PROFINET® / IP66 / NEMA 4X



Manual control
Pump drive 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
Intuitive keypad and colour display
Choice of flowrate or speed display
Full calibration with choice of flow units
MemoDose function
Auto restart facility
Guard switch detection
Leak detection
Dipensing (Network Control)



Remote control
Pump drives 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
Configurable Start/Stop, leak detector and pressure switch input via contact closure or 5 V TTL or 24 V industrial logic
Configurable Start/Stop, leak detector and pressure switch input via 110 V industrial logic
Direction change and auto/manual toggle input via contact closure or 5 V TTL or 24 V industrial logic
Direction change and auto/manual toggle input via 110 V industrial logic
Remote operation of MemoDose (foot/hand‑switch or logic input)
Four configurable digital status outputs through 24 V, 30 W relays
Four configurable digital status outputs through 110 V relays
Menu configurable logic outputs
Remote pressure/flow sensors



Analogue speed control
Pump drives 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
Fully configurable inputs; 0-10 V or 4-20 mA
Analogue outputs; 0-10 V, 4-20 mA
Keypad/analogue input scaling (replacement of diaphragm pumps)
Tacho frequency output; 0-1478 Hz
2x sensor inputs 4-20 mA*



Security
Pump drives 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
3-level Security PIN lock



Network communication
Pump drives 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
RS485 network control
RS232 network control



Digital pump commands (Profibus / EtherNet/IP)
Pump drives 630S 630SN 630U 630UN 630Du 630DuN 630Bp 630BpN 630US 630DuS 630En 630EnN 630Pn 630PnN
PROFIBUS® DP V0
PROFINET® (CC-B & Netload Class III)
EtherNet/IP™
Communication speeds from 9.6 kbits/s up to 12000 kbits/s
Network speed: 10/100 Mbps - Full Duplex Operation
Network speed: 100 Mbps - Full Duplex Operation
Auto-detect bus speed
Speed set point
Speed feedback
Flow calibration function
Hours run
Revolution counter
Leak detection
Low fluid level alarm
Diagnostic feedback
Flow Totaliser
Sensor scaling
Dispensing (Network Control)**

*Range of 3rd party pressure/flow sensors supported—see compatible sensor list on www.wmftg.com/literature

**Dispensing (Network/Manual) - Store up to 100 recipes locally or via network control. Features include volume, flow rate, anti-drip, ramp and time delays. Run these as batches using local, network or manual keypad control.
