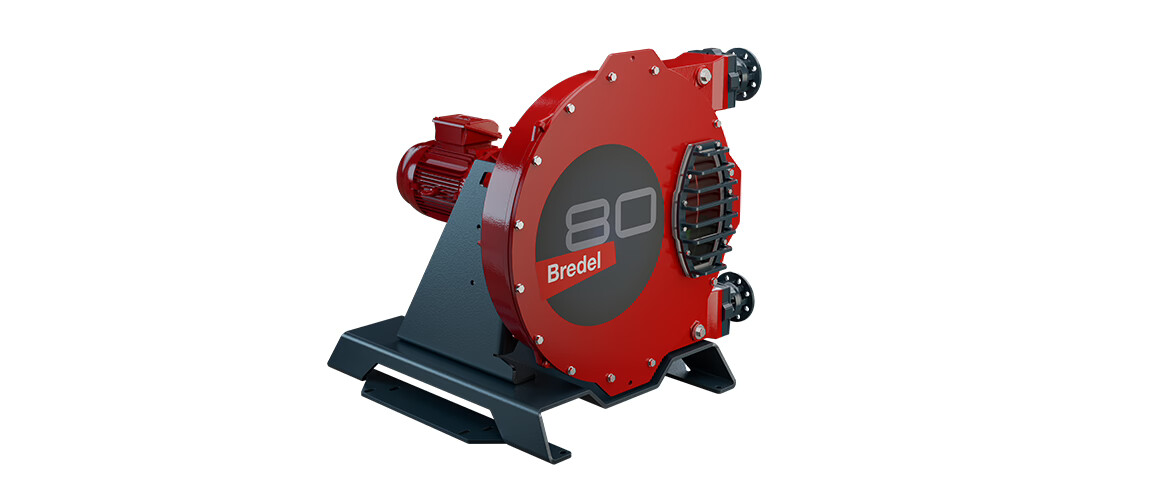

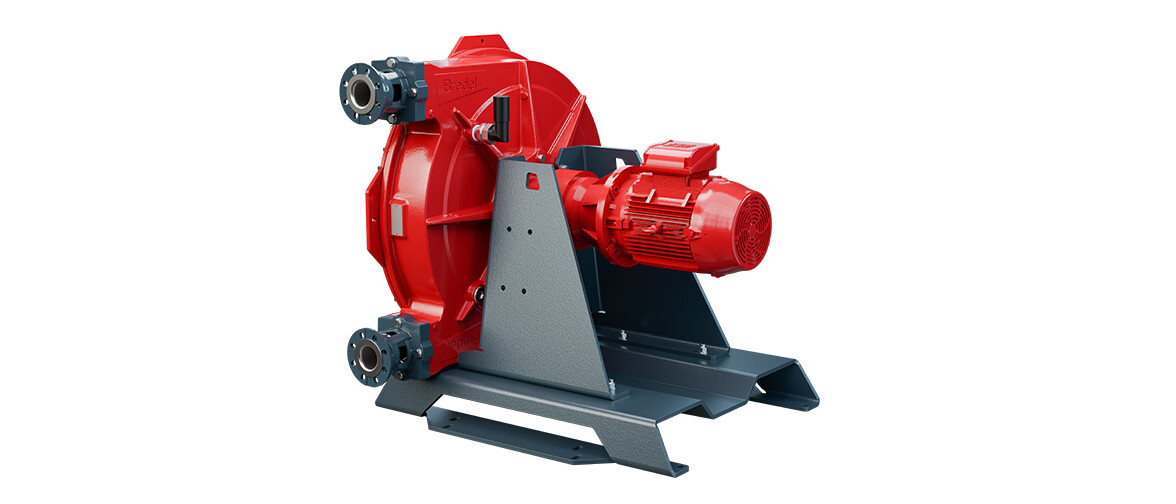

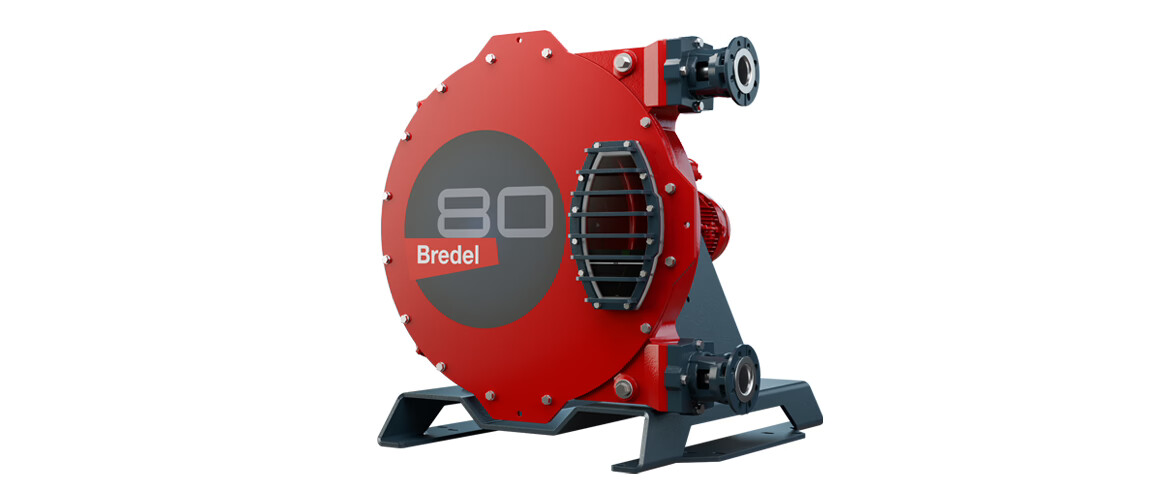

Bredel Heavy Duty pump

The Bredel series of hose pumps are the preferred solution for managing abrasive and corrosive fluids in a wide range of industries.

The Bredel Heavy Duty pump provides an enhanced level of safety and reliability features for particularly harsh environments such as those found in mining or construction.

Individually, each feature has been designed to meet a common challenge when operating a pump in a mining or construction application. Together, these enhanced features provide users with a safer, efficient and sustainable pump, specifically designed for use in harsh operating conditions.

Features and benefits

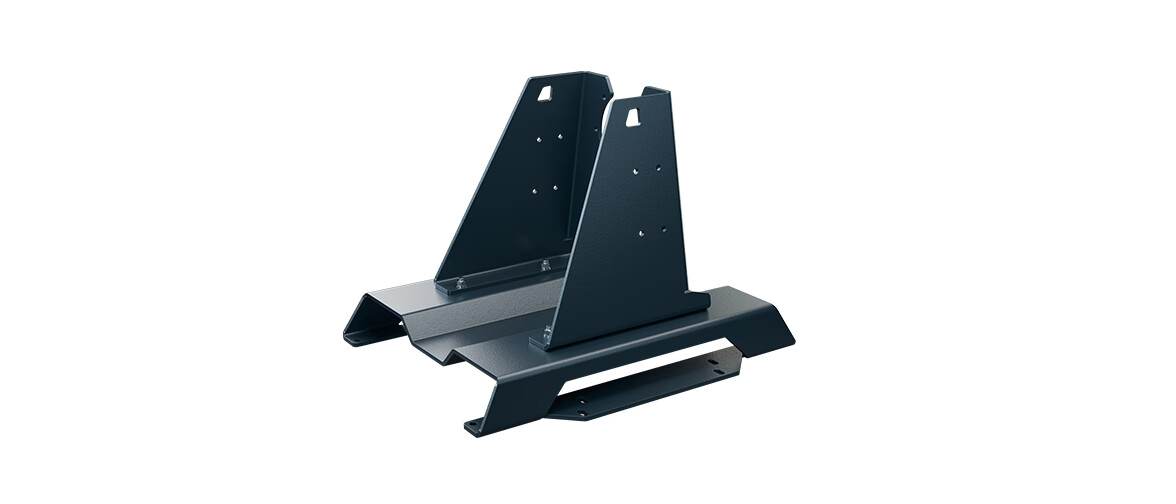

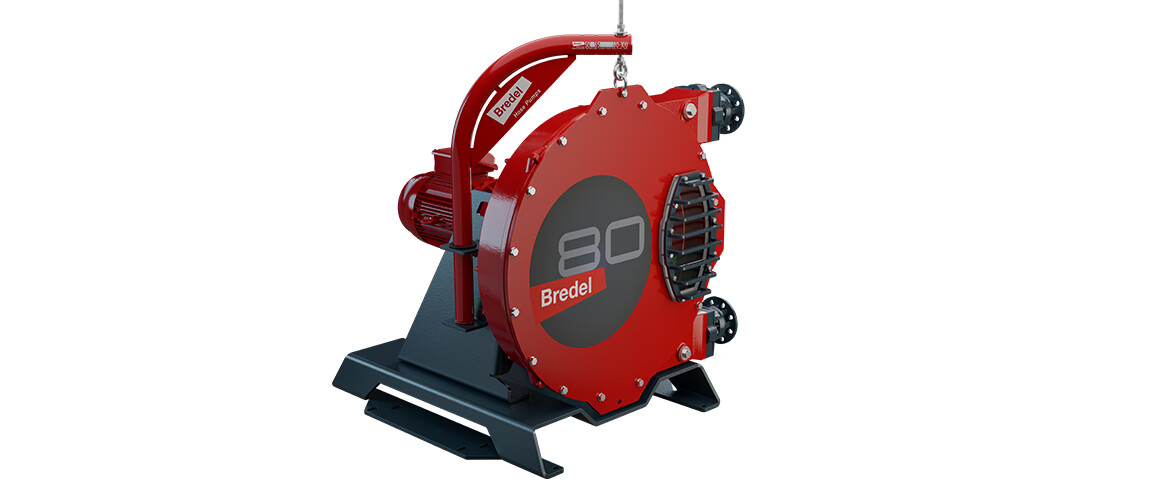

  • Heavy duty frame: designed for safer pump transportation, using a forklift truck
  • Heavy duty bearings: provide improved lifetime when pumping high-solid content slurries

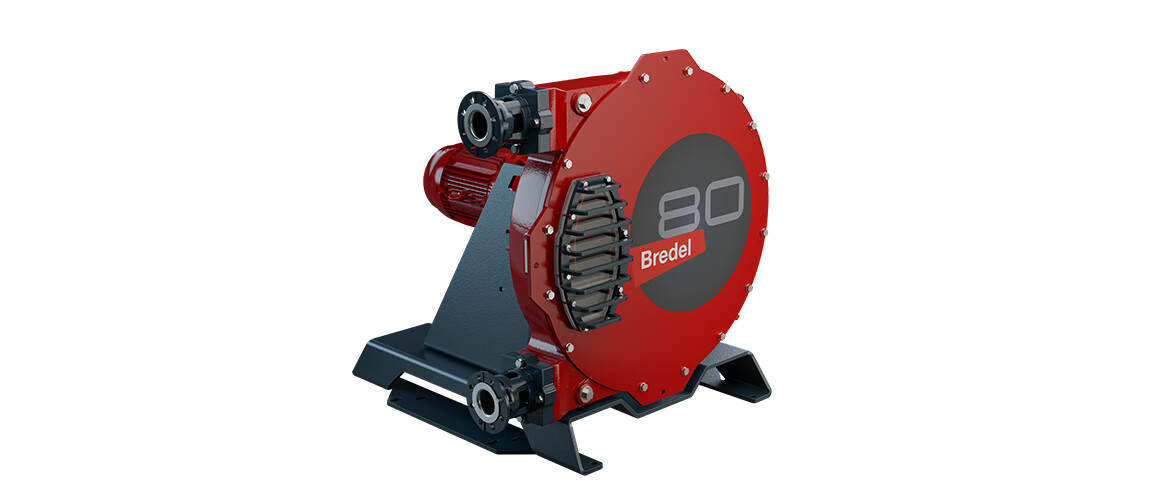

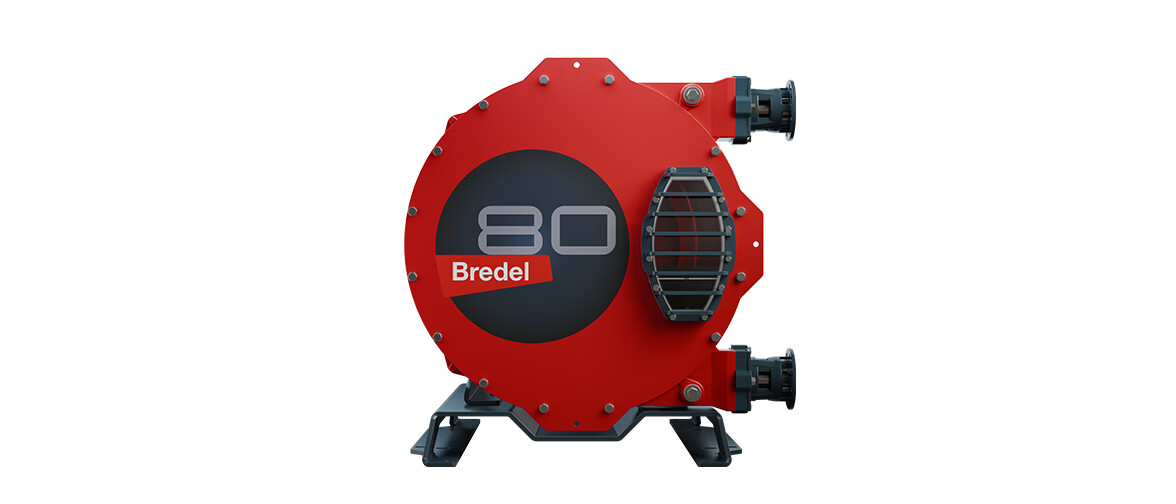

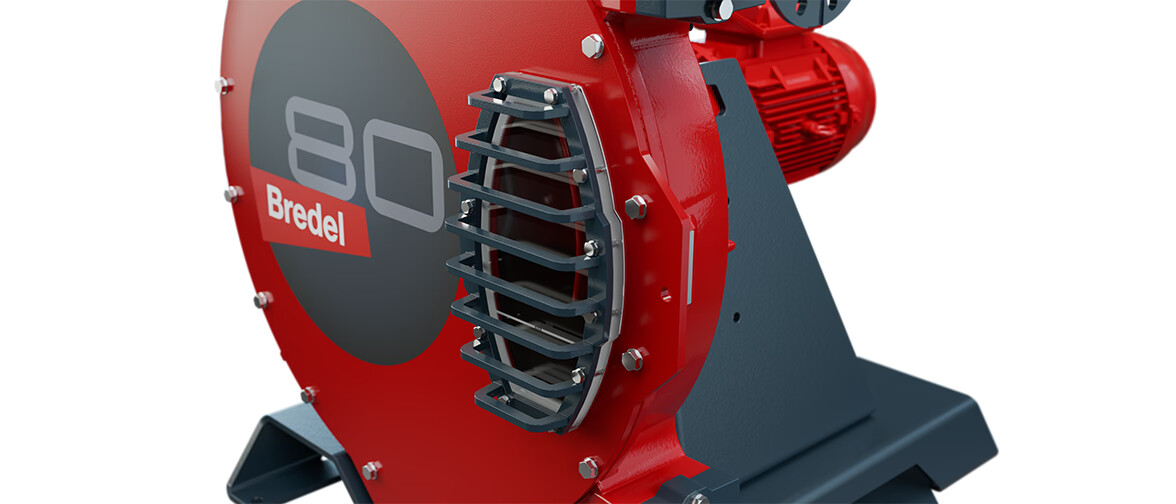

  • Window guard: extra protection for the inspection window

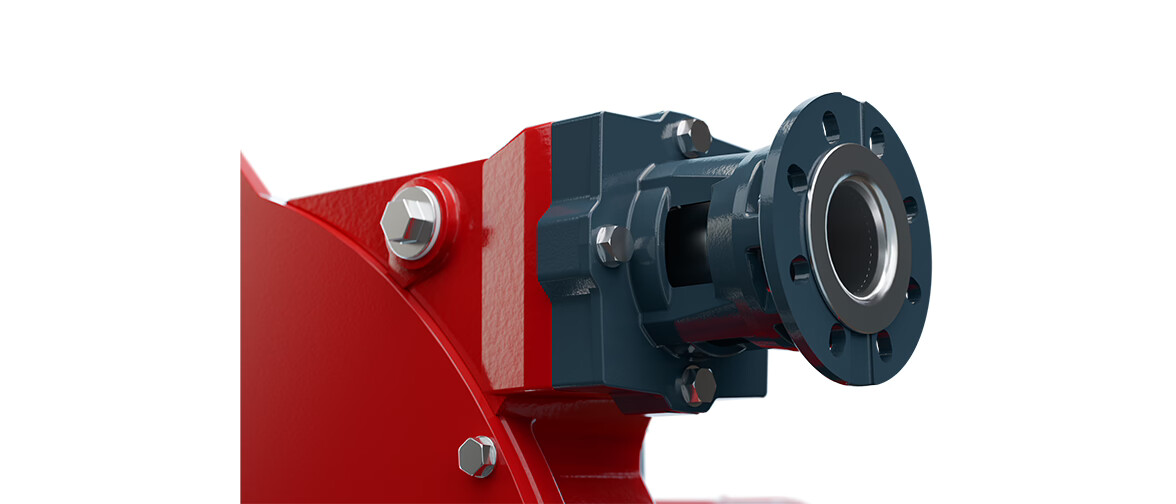

  • Reinforced brackets: more robust design, less risk of lubricant leakage, easier maintenance
  • C4H paint: enhanced durability in highly corrosive environments

Technical summary

Max. flow rate continuous72000 L/h
Max. flow rate continuous18997 USGPH
Volume per revolution1.33 - 40 L
Max. continuous operating speed30 - 75 rpm
Max. operating pressure16 bar
Max. operating pressure232 psi
Min. starting torque320 - 5,300 N m
Min. starting torque2832 - 46,908 in.lbs
Weight152 - 6,093 kg

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Share

Performance

Bredel Heavy Duty 40 performance

Bredel Heavy Duty 50 performance

Bredel Heavy Duty 65 performance

Bredel Heavy Duty 80 performance

Bredel Heavy Duty 100 performance

Bredel Heavy Duty 265 performance

Bredel Heavy Duty 280 performance

Bredel Heavy Duty 2100 performance

Specifications

Technical specifications

Bredel Heavy Duty 40Bredel Heavy Duty 50Bredel Heavy Duty 65Bredel Heavy Duty 80Bredel Heavy Duty 100Bredel Heavy Duty 265Bredel Heavy Duty 280Bredel Heavy Duty 2100
Max. flow rate continuous1579 USGPH (5985 L/h) 2774 USGPH (10512 L/h) 5303 USGPH (20100 L/h) 7409 USGPH (28080 L/h) 9499 USGPH (36000 L/h) 10607 USGPH (40200 L/h) 14818 USGPH (56160 L/h) 18997 USGPH (72000 L/h)
Max. flow rate intermittent2527 USGPH (9576 L/h) 4623 USGPH (17520 L/h) 8485 USGPH (32160 L/h) 11113 USGPH (42120 L/h) 15831 USGPH (60000 L/h) 16971 USGPH (64320 L/h) 22227 USGPH (84240 L/h) 28496 USGPH (108000 L/h)
Volume per revolution0.35 USG (1.33 l) 0.77 USG (2.92 l) 1.77 USG (6.7 l) 3.09 USG (11.7 l) 5.28 USG (20 l) 3.54 USG (13.4 l) 6.18 USG (23.4 l) 10.57 USG (40 l)
Max. continuous operating speed75 rpm60 rpm50 rpm40 rpm30 rpm50 rpm40 rpm30 rpm
Max. intermittent operating speed120 rpm100 rpm80 rpm60 rpm50 rpm80 rpm60 rpm50 rpm
Max. operating pressure232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar) 232 psi (16 bar)
Max. inlet pressure 38 psi abs (2.5 bar abs) 38 psi abs (2.5 bar abs) 30 psi abs (2 bar abs) 23 psi abs (1.5 bar abs) 23 psi abs (1.5 bar abs) 30 psi abs (2 bar abs) 23 psi abs (1.5 bar abs) 23 psi abs (1.5 bar abs)
Max. suction capability374 inWC (9.5 mWC) 374 inWC (9.5 mWC) 374 inWC (9.5 mWC) 354 inWC (9 mWC) 276 inWC (7 mWC) 374 inWC (9.5 mWC) 354 inWC (9 mWC) 276 inWC (7 mWC)
Suction capability (80% Flow rate)354 inWC ( 9 mWC) 315 inWC ( 8 mWC) 315 inWC ( 8 mWC) 276 inWC ( 7 mWC) 197 inWC ( 5 mWC) 315 inWC ( 8 mWC) 276 inWC ( 7 mWC) 197 inWC ( 5 mWC)
Operating temperature-4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)  -4 °F to 113 °F (-20 °C to 45 °C)
Fluid temperature-4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)  -4 °F to 176 °F (-20 °C to 80 °C)
Min. starting torque2832 in.lbs (320 N m) 5487 in.lbs (620 N m) 10178 in.lbs (1150 N m) 17701 in.lbs (2000 N m) 27437 in.lbs (3100 N m) 17701.5 in.lbs (2000 N m) 30092 in.lbs (3400 N m) 46908 in.lbs (5300 N m)
Weight 480 lbs (218 kg) 879 lbs (399 kg) 1411 lbs (640 kg) 2516 lbs (1141 kg) 3364 lbs (152 kg) 6439 lbs (2920 kg) 9922 lbs (4500 kg) 13433 lbs (6093 kg)
Heavy Duty bracket weight5.5 kg7 kg13.5 kg15.3 kg25.1 kg13.5 kg15.3 kg25.1 kg
Heavy Duty bracket weight12.1 lbs15.4 lbs29.8 lbs33.7 lbs55.3 lbs29.8 lbs33.7 lbs55.3 lbs
Window guard weight2.6 lbs (1.2 kg) 5.4 lbs (2.4 kg) 11.3 lbs (5.1 kg) 14.9 lbs (6.8 kg) 26.4 lbs (12 kg) 11.3 lbs (5.1 kg) 14.9 lbs (6.8 kg) 26.4 lbs (12 kg)
Heavy Duty support frame weight90 lbs (41 kg) 187 lbs (85 kg) 228 lbs (103 kg) 640 lbs (290 kg)
Hose lubricant required 1.32 USG (5 l) 2.64 USG (10 l) 5.28 USG (20 l) 10.57 USG (40 l) 15.85 USG (60 l) 10.57 USG (40 l) 21.13 USG (80 l) 31.7 USG (120 l)
Port configurationsDown, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up Down, Left, Right, Up
Heavy Duty support frame weight2 std bearings 2 std bearings Heavy duty bearings or 3 std bearings Heavy duty bearings or 3 std bearings Heavy duty bearings or 3 std bearings Heavy duty bearings or 3 std bearings Heavy duty bearings or 3 std bearings Heavy duty bearings or 3 std bearings
Compatible hose materialsCSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer
Flange assembly typeANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS ANSI, DIN, JIS
Please consult your Bredel representative for lower or higher temperature operation. Allowable ambient temperature is based on pump capabilities and may be further limited by gearbox ambient capabilities.

Bredel Heavy Duty 40 dimensions

Type A B C D E F G H H1 J K Lmax L1 L2max M N O ØP ØQ R
Bredel 40 (mm) 692 402 2.5 430 162 490 560 695 377 109 84 942 91 301 300 193 177 18 18 110
Bredel 40 (inches) 27.2 15.8 0.09 16.9 6.4 19.3 22 27.4 14.8 4.3 3.3 37.1 3.6 11.9 11.8 7.6 7.0 0.71 0.71 4.3
Connector sizes ANSI 150# EN DIN JIS
Bredel 40 1.5" 40mm 40mm

Bredel Heavy Duty 50 dimensions

Type A B C D E F G H H1 J K Lmax L1 L2max M N O ØP ØQ R
Bredel 50 (mm) 826 464 3 554 183 620 725 851 460 131 95 1022 112 339 380 225 325 18 18 125
Bredel 50 (inches) 32.5 18.3 0.12 21.8 7.2 24.4 28.5 33.5 18.1 5.2 3.7 40.2 4.4 13.3 15 8.9 12.8 0.71 0.71 4.9
Connector sizes ANSI 150# EN DIN JIS
Bredel 50 2" 50mm 50mm

Bredel Heavy Duty 65 dimensions

Type A B C D E F G H H1 J K Lmax L1 L2max M N O ØP ØQ R
Bredel 65 (mm) 1046 570 3 746 207 680 725 1091 580 136 137 1204 141 486 415 273 243 18 18 145
Bredel 65 (inches) 41.2 22.4 0.12 29.4 8.1 26.8 28.5 43 22.8 5.4 5.4 47.4 5.6 19.1 16.3 10.7 9.6 0.71 0.71 5.7
Connector sizes ANSI 150# EN DIN JIS
Bredel 65 2.5" 65mm 65mm

Bredel Heavy Duty 80 dimensions

Type A B C D E F G H H1 J K Lmax L1 L2max M N O ØP ØQ R
Bredel 80 (mm) 1244 686 4 876 262 900 1115 1298 700 193 145 1408 166 582 525 337 398 22 18 160
Bredel 80 (inches) 49.0 27.0 0.16 34.5 10.3 35.4 43.9 51.1 27.6 7.6 5.7 55.4 6.5 22.9 20.7 13.3 15.7 0.9 0.71 6.3
Connector sizes ANSI 150# EN DIN JIS
Bredel 80 3" 80mm 80mm

Bredel Heavy Duty 100 dimensions

Type A B C D E F G H H1 J K Lmax L1 L2max M N O ØP ØQ R
Bredel 100 (mm) 1452 800 3 1042 284 1050 1115 1500 790 209 165 1450 200 489 540 374 346 22 18 180
Bredel 100 (inches) 57.2 31.5 0.12 41 11.2 41.3 43.9 59.1 31.1 8.2 6.5 57.1 7.9 19.3 21.3 14.7 13.6 0.9 0.71 7.1
Connector sizes ANSI 150# EN DIN JIS
Bredel 100 4" 100mm 100mm

Bredel Heavy Duty 265 dimensions

Type A1 A2 B C D E F G H ØQ R
Bredel 265 (mm) * 1105 570 3 746 152 720 1033 1036 18 145
Bredel 265 (inches) * 43.5 22 0.12 29.4 5.99 28.3 40.7 40.8 0.71 5.7
Type A1 A2 B C D E F G H ØQ R
Bredel 280 (mm) * 1390 686 4 876 182 800 1152 1218 18 160
Bredel 280 (inches) * 54.7 27 0.16 34.5 7.2 31.5 45.4 48 0.71 6.3
Type A1 A2 B C D E F G H ØQ R
Bredel 2100 (mm) * 1503 800 3 1042 199 916 1338 1415 18 180
Bredel 2100 (inches) * 59.2 31.5 0.12 41 7.8 36.1 52.7 55.7 0.71 7.1

Materials of construction

Hose materialCSM, EPDM, F-NBR, NBR, NBR for food, NR Endurance, NR-Transfer
HousingCast iron, ISO12944 category C4H, ISO12944 category C4M, ISO12944 category C5M
Rotor assemblyCast iron, ISO12944 category C4M
Cover assemblyCast iron, ISO12944 category C4M
Brackets and fastenersCast iron, Galvanized steel, ISO12944 category C4M, Stainless steel 316
Support frameGalvanized steel, ISO12944 category C4H, ISO12944 category C5M, Stainless steel 316
Coupling bushAlloy steel
SealsNeoprene, Nitrile, Thermoplastic polyurethane
ISO12944 category C4H, Steel

Documentation

Brochures

  1. Bredel Heavy Duty pumps (EN).pdf
    PDF - 1.2mb

Datasheets

  1. Bredel Heavy Duty 40 datasheet (US).pdf
    PDF - 1.5mb
  2. Bredel Heavy Duty 50 datasheet (US).pdf
    PDF - 1.5mb
  3. Bredel Heavy Duty 2100 datasheet (US).pdf
    PDF - 1.6mb
  4. Bredel Heavy Duty 100 datasheet (US).pdf
    PDF - 1.5mb
  5. Bredel Heavy Duty 65 datasheet (US).pdf
    PDF - 1.5mb
  6. Bredel Heavy Duty 80 datasheet (US).pdf
    PDF - 1.5mb
  7. Bredel Heavy Duty 265 datasheet (US).pdf
    PDF - 1.6mb
  8. Bredel Heavy Duty 280 datasheet (US).pdf
    PDF - 1.6mb

Manuals

  1. Bredel 40, 50, 65, 80, 100 manual (EN).pdf
    PDF - 10.2mb

Other Resources

  1. Engineering Specifications Bredel 65-100 (US).zip
    ZIP - 771.5kb

Recommended Products

  1. CSM hose

    CSM hose

    CSM hose elements. Outstanding resistance to strong, oxidizing products and concentrated acids and bases.

    Hose pump elements

  2. EPDM hose

    EPDM hose

    EPDM hose elements. Excellent chemical resistance, especially to ketones, alcohols and concentrated acids.

    Hose pump elements

  3. NBR (Buna N) hose

    NBR (Buna N) hose

    NBR (Buna N) hose elements. Resistant to oils, greases, alkalis and detergents.

    Hose pump elements

Related Products

  1. Bredel hose pumps (10-50)

    Bredel hose pumps (10-50)

    Flow rates to 4623 GPH and pressures up to 232 psi. Eliminate ancillary equipment.

    Pumps - hose pumps

  3. Bredel DuCoNite pumps

    Bredel DuCoNite pumps

    Flow rates to 23.1 GPM and pressures up to 232 psi. Paint-free electroplated pump housing.

    Pumps - hose pumps
