500 series panel mount pumps

Overview

500 series high-flow pumps

500 series pumps comprise a choice of pumpheads made from chemical resistant materials. A wide range of powerful AC, DC and brushless DC drives provide power and control options for flow rates up 3,500 mL/min. Changing a tube is the only routine maintenance required.

Pumpheads

  • 520R/R2 pumpheads feature two sprung rollers and transparent cover so you can see the pump running easily. Pumpheads accept eight sizes of continuous tubing up to 9.6 mm bore. 520R for 1.6 mm wall and 520R2 for 2.4 mm wall thickness tubing for lower inlet pressure or higher viscosity.
  • 520RE LoadSure® element pumpheads guarantee perfect tube loading, one-minute maintenance and pressure up to 7 bar (dependant on the choice of drive);
    • 520REL—LoadSure® elements for 0–2 bar operation
    • 520REM—LoadSure® Elements for 0–4 bar operation
    • 520REH—LoadSure® Elements for 0–7 bar operation

Drives

  • 520DriveSure: 12 V to 48 V DC integrated BLDC motor with Industrial Ethernet and analogue control options, sealed mounting plate and PC software (WM Connect). Flow rates up to 3,500 mL/min
  • 520VBM: 24 V brushless DC drives with two maximum speeds, flow rates up to 2,850 mL/min
  • 520FAM: 50 Hz or 60 Hz single phase, induction motor drive in five maximum speeds, flow rates up to 2170 mL/min
  • 520FDM: 12 V and 24 V DC drives in four maximum speeds, flow rates up to 3,450 mL/min

Technical summary

Motor typesBrushless DC motor, DriveSure brushless DC motor, Fixed speed DC motor, Synchronous AC motor, Variable speed brushless DC motor
Pumphead options505L, 520R, 520R2, 520REH, 520REL, 520REM
StandardsBS EN 55011-2016+A2-2021, BS EN 61010-1, BS EN IEC 61326-1-2021, CAN/CSA C22.2 No 61010-1, CE, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1, IEC 61010-1:2010/AMD1:2016, RoHS, UL 61010-1, UL 61010-1:2012/R:2

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

500DriveSure performance

Flow rates (ml/min) Tubing 1.6mm wall
Tube bore (mm) Speed (rpm)
8 220
0.5 0.33 9.50
0.8 0.84 24
1.6 3.40 97
3.2 13 390
4.8 30 870
6.4 54 1500
8.0 84 2400
Flow rates (ml/min) Tubing 2.4mm wall
Tube bore (mm) Speed (rpm)
8 220
0.5 0.33 9.50
0.8 0.84 24
1.6 3.40 97
3.2 13 390
4.8 30 870
6.4 54 1500
8.0 84 2400
9.6 120 3500

Flow rates are for guidance only at 0 bar. Always test pumphead flow capability in the relevant fluid system

500 DriveSure ADC/En/Pn performance

520R Pumphead for continuous tubing (1.6 mm wall thickness) up to 2 bar (29 PSI)
Tube material Flow Rate (mL/min) by tube bore from 0.1 rpm (Min) to 220 rpm (Max)
0.5 mm 0.8 mm 1.6 mm 3.2 mm 4.8 mm 6.4 mm 8.0 mm
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
Pumpsil® 0.004 9.5 0.011 24 0.04 97 0.18 390 0.40 870 0.70 1500 1.10 2400
STA-PURE® PCS
STA-PURE® PFL
Marprene® 0.004 9.0 0.011 24 0.04 92 0.17 370 0.38 830 0.67 1500 1.10 2300
Bioprene® 0.004 9.0 0.011 24
PureWeld XL® 0.004 9.0

520R2 Pumphead for continuous tubing (2.4 mm wall thickness) up to 2 Bar (29 PSI)
Tube material Flow Rate (mL/min) by tube bore from 0.1 rpm (Min) to 220 rpm (Max)
0.5 mm 0.8 mm 1.6 mm 3.2 mm 4.8 mm 6.4 mm 8.0 mm 9.6 mm
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
Pumpsil® 0.004 9.5 0.011 24 0.04 97 0.18 390 0.40 870 0.7 1500 1.10 2400 1.60 3500
STA-PURE® PCS
STA-PURE® PFL
Marprene® 0.04 92 0.17 370 0.38 830 0.67 1500 1.10 2300 1.50 3300
Bioprene®
PureWeld XL®

520REL Pumphead for LoadSure TL elements up to 2 Bar (29 PSI)
LoadSure element Flow Rate (mL/min) by tube bore from 0.1 rpm (Min) to 220 rpm (Max)
3.2 mm 6.4 mm 9.6 mm
Min Max Min Max Min Max
Pumpsil® 0.18 390 0.70 1500 1.60 3500
STA-PURE® PCS
STA-PURE® PFL
Marprene® 0.17 370 0.67 1500 1.50 3300
Bioprene®

520REM Pumphead for LoadSure TM elements up to 4 Bar (58 PSI)
LoadSure element Flow Rate (mL/min) by tube bore from 0.1 rpm (Min) to 220 rpm (Max)
3.2 mm 6.4 mm
Min Max Min Max
STA-PURE® PCS 0.18 390 0.70 1500
STA-PURE® PFL
Marprene® 0.17 370 0.67 1500
Bioprene®

Performance data is based on a 48 V DC power supply, pumping water, with 0 bar inlet and discharge pressure. Actual performance is dependent on power supply voltage (DriveSure range 12 V to 48 V DC). For further information contact your local Watson-Marlow representative.

Specifications

Technical specifications

500 DriveSure ADC/En/Pn500 FAM500 FDM500 VBM
Motor typesBrushless DC motor Synchronous AC motor Fixed speed DC motor Variable speed brushless DC motor
Pumphead options520R, 520R2, 520REL, 520REM 520R, 520R2, 520REH, 520REL, 520REM 520R, 520R2, 520REH, 520REL, 520REM 520R, 520R2, 520REH, 520REL, 520REM
Pumphead number of rollers2 2 2
Pumphead number of channels1 1 1
Min. flow rate 0.004 ml/min1.5 ml/min1.8 ml/min4.1 ml/min
Max. flow rate3500 ml/min2170 ml/min3450 ml/min2850 ml/min
Min. operating speed0.1 rpm37 rpm45 rpm36 rpm
Max. operating speed220 rpm290 rpm230 rpm360 rpm
Speed Resolution0.1 rpm
Supply voltage12 V to 48 V DC 115 V AC, 60 Hz, 230 V AC, 50 Hz 12 V DC, 24 V DC 24 V DC
Operating temperature range 5 °C to 40 °C-10 °C to 40 °C-10 °C to 40 °C-10 °C to 40 °C
Operating temperature range 41 °F to 104 °F14 °F to 104 °F14 °F to 104 °F14 °F to 104 °F
Rated Power75 W
Power consumption20W - 40W 30 W - 30W 35W
Control options0–10 V, 2–2000 Hz, 4–20 mA, EtherNet/IP™, Fixed speed, Prime speed, PROFINET® 0–4 V
AlarmsCover-open, Hardware fault, Over current, Over temperature, Software fault, Speed, Stall, Under/over voltage
OutputsFault, Tacho Tacho
External InputsPrime switch
Weight2.9 - 3 kg
Weight5.291 - 6.614 lbs
LocationIndoor, Enclosure
Ingress ProtectionIP66 capable panel sealing IP41, IP41 drive IP41, IP41 drive IP41, IP41 drive
Humidity80 % up to 31 °C (88 °F), decreasing linearly to 50 % at 40 °C (104 °F)
Noise<65 dB(A)
Max. altitude2000 m
Max. altitude6561 ft
Gearbox ratioSpur; 10:1, Spur; 20:1, Spur; 40:1, Spur; 5:1 Spur; 10:1, Spur; 20:1, Spur; 40:1, Spur; 7.5:1 Spur; 10:1, Spur; 20:1, Spur; 40:1
StandardsBS EN 55011-2016+A2-2021, BS EN IEC 61326-1-2021, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1:2010/AMD1:2016, UL 61010-1:2012/R:2019-07
Certification and ComplianceCB Certificate, EMC, NRTL certification
Compatible tubing bore size 0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm
Compatible tubing wall thickness 1.6, 2.4 mm1.6, 2.4 mm1.6, 2.4 mm1.6, 2.4 mm
Outputs are for ADC version only. Alarms are for EtherNet/IP™ & PROFINET® versions only. For detailed specifications of individual models refer to product reference manual or contact WMFTS representative.

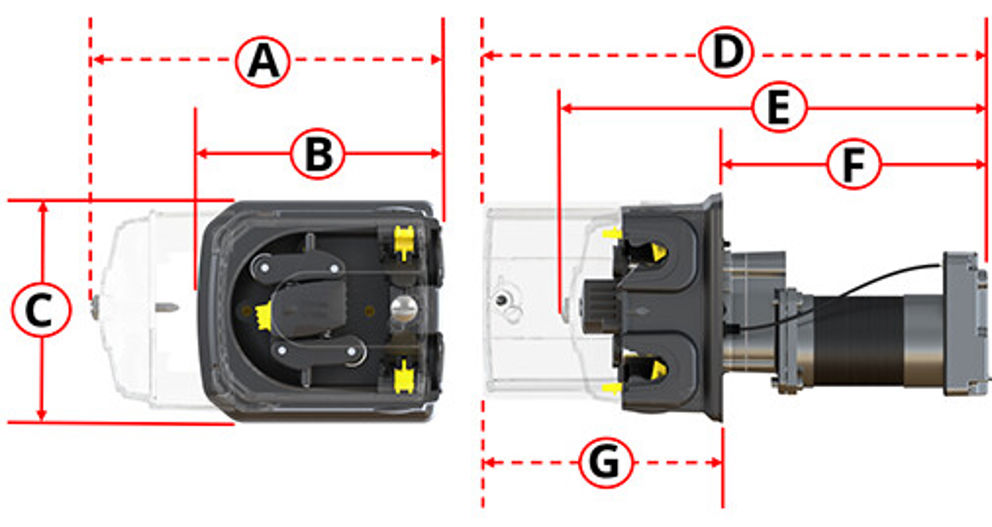

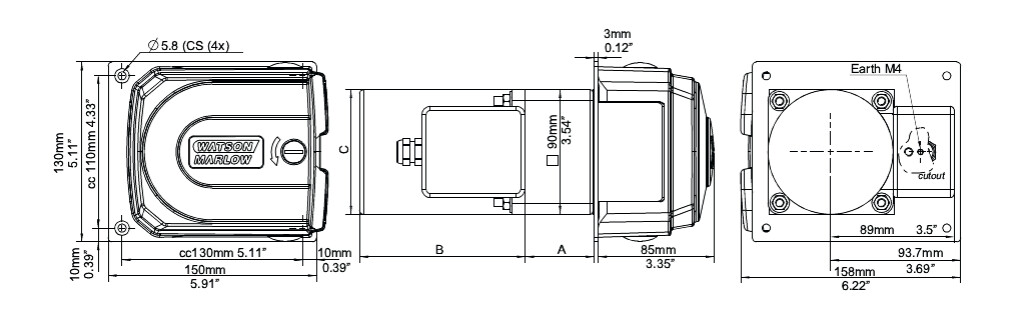

500 DriveSure ADC/En/Pn dimensions

A B C D E F G
mm in mm in mm in mm in mm in mm in mm in
212 8.35 150 5.91 132 5.20 318 12.52 260 10.24 161 6.34 157 6.18

Materials of construction

Pumphead body assemblyAcetal, Aluminium, Aluminium alloy, Brass, Polycarbonate (PC), Polyphenylene sulphide (PPS)
Pumphead rotor assemblyPolyphenylene sulphide (PPS), Stainless steel 316
Pumphead roller assemblyMoS2 filled Nylon 6 (Nylatron), Polyphenylene sulphide (PPS), Stainless steel 316
Tube clamp assemblyAcetal copolymer (Kematal)
Motor GearboxAluminium, Nitrile, Stainless steel
Controller HousingABS/PC, Aluminium
Mounting plate assemblyNitrile, Polyacrylamide (PARA)-halogen free, UL94 V-0 rated, Polyarylamide (halogen free, UL94 V-0 rated), Stainless steel, Thermoplastic elastomer (TPE)

Information listed covers the complete range. For detailed specifications of individual models/components refer to product reference manual or contact WMFTS representative.

Literature

Datasheet

  1. DriveSure datasheet (EN).pdf
    PDF - 375.3kb
  2. 500 DriveSure ADC En Pn datasheet (EN).pdf
    PDF - 2mb
  3. 520FAM FDM VBM datasheet (EN).pdf
    PDF - 213.3kb

Manuals

  1. DriveSure manual (EN).pdf
    PDF - 5.1mb

Other Resources

  1. GSDML-V2.42-Watson Marlow-WM DrivesurePn-20230427.zip
    ZIP - 3.9kb
  2. WatsonMarlowConnectInstaller-1.16.1.zip
    ZIP - 67mb
  1. WM-DrivesureEn-rev-1-5.eds
    EDS - 84.7kb

Order Information

Product codes

500DriveSure product codes

Description Motor control Product code
PMD48CV500 0 - 10 V Contact your local Watson-Marlow representative
PMD48CI500 4 - 20 mA Contact your local Watson-Marlow representative

For mounting plate options, test leads and further pumphead configurations, contact your local Watson-Marlow sales representative

500 DriveSure ADC/En/Pn product codes

A
B
C
D
E
F-G
Product
Control
Cable length
Pumphead colour
Pumphead
Pumphead model
0 = Complete pump 4 = ADC 1 = 1 m (3.28 ft) cable 0 = No pumphead 0 = No pumphead 00 = No pumphead
6 = Drive only 8 = En (EtherNet/IPTM) 3 = 3 m (9.84 ft) cable 1 = Standard colour R = 520 Series 10 = 520R
9 = Pn (PROFINET®) 2L = 520R2
EL = 520REL
EM = 520REM
Accessories and Spares
Product Product code
500 Series DriveSure Sealed Mounting Plate / Sensor 059.IPMP.DVS
DriveSure cable pack - 24 V power supply/USB-C - trials only * 009.24CP.DVS
DriveSure cable pack - 48 V power supply/USB-C - trials only * 009.48CP.DVS
1 m Power Cable DriveSure ADC/En/Pn 009.1PW.DVS
3 m Power Cable DriveSure ADC/En/Pn 009.3PW.DVS
1 m Control Cable DriveSure ADC 009.1CC.DVS
3 m Control Cable DriveSure ADC 009.3CC.DVS
Ethernet Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m 059.9123.000
PROFINET® Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m 059.9128.000

*Cable packs do not include mains power lead. If required, order power leads suitable for your region.
