Qdos metering pump

Overview

Qdos chemical metering pumps

Delivering flow rates that remain constant right up to 9 bar Qdos peristaltic chemical metering and dosing pumps give users a unique advantage over diaphragm metering pumps.

Qdos pumps offer long maintenance intervals - reducing the impact of process downtime and lowering the overall cost of ownership.

Eliminate ancillary equipment

A diaphragm metering pump often requires a range of high maintenance ancillary items to function.

Qdos pumps eliminate the need for ancillary equipment while ensuring accurate, linear and repeatable metering across all process conditions.

Chemical Compatibility Guide

Features and benefits

  • Flow rates from 0.1 to 2000 ml/min (0.001 to 31.7 USGPH) at up to 9 bar (130 psi)
  • Simple drop-in installation eliminates ancillary equipment
  • Reduced maintenance with single, no-tools, component replacement
  • Cost of ownership is less than that of a diaphragm pump
  • Cut chemical cost through higher accuracy metering
  • No backpressure valves, pulsation dampener, degassing valves, foot valves, strainers or float switches

Technical summary

Max. flow rate2000 ml/min
Min. flow rate 0.1 ml/min
Max. flow rate31.7 USGPH
Min. flow rate0.001 USGPH
Max. operating pressure9 bar
Max. operating pressure130 psi
Ambient Temperature Range5 – 45 °C
Ambient Temperature Range41 – 113 °F
Control typesManual, PROFIBUS®, Remote, Universal, Universal relay, Universal+, Universal+ relay
StandardsCE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61
Drive standardsCE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61
Drive ingress protectionIP66, NEMA 4X
Power supply100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC
Drive power supply100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Qdos 20 performance

qdos qdos remote
Speed (rpm) Flow ml/min (USGPH)* Speed (rpm) Flow ml/min(USGPH)*
qdos 20 0.017-55 0.1-333 (0.001-5.3) 0.034-55 0.2-333 (0.003-5.3)
qdos 20 PU 0.017-55 0.1-450 (0.001–7.13) NA NA

*accuracy ±1%, repeatability ±0.5%

Qdos 30 performance

qdos qdos remote
Speed (rpm) Flow ml/min (USGPH)* Speed (rpm) Flow ml/min(USGPH)*
qdos 30 0.025-125 0.1-500 (0.001-7.93) 0.078-125 0.3-500 (0.005-7.93)

*accuracy ±1%, repeatability ±0.5%

Qdos 60 performance

qdos qdos remote
Speed (rpm) Flow ml/min (USGPH)* Speed (rpm) Flow ml/min(USGPH)*
qdos 60 0.013-125 0.1-1000 (0.001-15.85) 0.078-125 0.6-1000 (0.01-15.85)
qdos 60 PU 0.013-125 0.1-1000 (0.001-15.85) 0.078-125 0.6-1000 (0.01-15.85)

*accuracy ±1%, repeatability ±0.5%

Qdos 120 performance

qdos qdos remote
Speed (rpm) Flow ml/min (USGPH)* Speed (rpm) Flow ml/min(USGPH)*
qdos 120 0.006-140 0.1-2000 (0.001-31.7) 0.078-125 1.25-2000 (0.02-31.7)

*accuracy ±1%, repeatability ±0.5%

Qdos CWT performance

Qdos® CWT™ Qdos® CWT™ remote
Speed (rpm) Flow ml/min (USGPH)* Speed (rpm) Flow ml/min(USGPH)*
0.025-125 0.1-500 (0.001-7.93) 0.078-125 0.3-500 (0.005-7.93)
*accuracy ±1%, repeatability ±0.5%
*Flow rates can be affected by discharge pressure

Specifications

Technical specifications

Qdos 20Qdos 30Qdos 60Qdos 120Qdos CWT
Max. operating pressure7 bar7 bar7 bar4 bar9 bar
Max. operating pressure100 psi100 psi100 psi60 psi130 psi
Ambient Temperature Range5 – 40 °C5 – 45 °C5 – 45 °C5 – 45 °C5 – 40 °C
Ambient Temperature Range41 – 104 °F41 – 113 °F41 – 113 °F41 – 113 °F41 – 104 °F
Weight5.7 kg5.05 kg5.7 kg5.7 kg6.8 kg
Weight12.6 lbs11.1 lbs12.6 lbs12.6 lbs15 lbs
Control typesManual, PROFIBUS®, Remote, Universal, Universal+ Manual, PROFIBUS®, Remote, Universal, Universal+ Manual, PROFIBUS®, Remote, Universal, Universal+ Manual, PROFIBUS®, Remote, Universal, Universal+ Manual, PROFIBUS®, Remote, Universal, Universal relay, Universal+, Universal+ relay
StandardsCE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61
Drive standardsCE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61 CE, cETLus, CSA, C-Tick, IRAM S Mark, NSF 61
Drive ingress protectionIP66, NEMA 4X IP66, NEMA 4X IP66, NEMA 4X IP66, NEMA 4X IP66, NEMA 4X
Drive humidity80% up to 31°C, 88°F, decreasing linearly to 50% at 40°C, 104°F 80% up to 31°C, 88°F, decreasing linearly to 50% at 40°C, 104°F 80% up to 31°C, 88°F, decreasing linearly to 50% at 40°C, 104°F 80% up to 31°C, 88°F, decreasing linearly to 50% at 40°C, 104°F 80% up to 31°C, 88°F, decreasing linearly to 50% at 40°C, 104°F
Drive noise<70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m <70dB(A) at 1m
Max. altitude2000 m2000 m2000 m2000 m2000 m
Power supply100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC
Drive power supply100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC 100 to 240 VAC 50 to 60 Hz 190 VA, 12 to 24 V DC
Minimum and maximum flow depends upon pumphead, flow unit and method of control. Pressure and speed depends on pumphead chosen.

Qdos 20 dimensions

Model A B C D E F G H I
qdos 20 234mm (9.2”) 214mm (8.4”) 104.8mm (4.1”) 266mm (10.5”) 43mm (1.7”) 173mm (6.8”) 40mm (1.6”) 140mm (5.5”) 10mm (0.4”)
*Optional relay module

Qdos 30 dimensions

Model A B C D E F G H I
qdos 30 234mm (9.2”) 214mm (8.4”) 71.5mm (2.8”) 233mm (9.2”) 43mm (1.7”) 173mm (6.8”) 40mm (1.6”) 140mm (5.5”) 10mm (0.4”)
*Optional relay module

Qdos 60 dimensions

Model A B C D E F G H I
qdos 60 234mm (9.2”) 214mm (8.4”) 104.8mm (4.1”) 266mm (10.5”) 43mm (1.7”) 173mm (6.8”) 40mm (1.6”) 140mm (5.5”) 10mm (0.4”)
*Optional relay module

Qdos 120 dimensions

Model A B C D E F G H I
qdos 120 234mm (9.2”) 214mm (8.4”) 104.8mm (4.1”) 266mm (10.5”) 43mm (1.7”) 173mm (6.8”) 40mm (1.6”) 140mm (5.5”) 10mm (0.4”)
*Optional relay module

Qdos CWT dimensions

A B C D E F G* H I J K L
234 mm (9.2”) 214 mm (8.4”) 146 mm (5.8”) 77.4 mm (3.1”) 11.5 mm (0.5”) 150 mm (5.9”) 43 mm (1.7”) 117.9 mm (4.6”) 173 mm (6.8”) 40 mm (1.6”) 140 mm (5.5”) 10 mm (0.4”)
*Optional relay module

Materials of construction

BearingsStainless steel, Steel
DriveshaftStainless steel 440C
Drive casework20% glass filled PPE/PS
Drive casework coating20% glass filled PPE/PS
Fluid connectorsPolypropylene, PVDF
Drive keypad/HMIPolyester
LubricantPFPE based
Pumphead body assembly30 % glass filled PPO/PS, 30% glass filled PPO/PS, 40 % glass filled PPS, 40% glass filled PPS
Pumphead rotor assemblyGlass filled Nylon, PP (polypropylene), Stainless steel
TubingPU, Santoprene, SEBS
MembraneEPDM
Fluid contact elementEPDM, PEEK, PP
Fluid connection portPolypropylene
Fluid connection sealsSantoprene
Pumphead enclosure40% glass filled PPS
Pumphead enclosure sealEPDM, NBR
RotorStainless steel 303

Control

Control options

Operational modes Manual Remote PROFIBUS Universal Universal+
Manual
PROFIBUS—bus speed 9.6–1,500 kb/s
Contact
4-20mA
Fault reporting



Features Manual Remote PROFIBUS Universal Universal+
Numerical flow display
Numerical speed display
Fluid level monitor
Max (prime)
Auto restart (after power restored)
Fluid recovery
Leak detection
3.5” (88.9mm) colour TFT display
LED Pump status icons



Control methods Manual Remote PROFIBUS Universal Universal+
Input/Output Options L L L or R L or R
Manual control capability
4-20mA input
4-20mA input two point calibration
4-20mA output
Contact input (pulse/batch) L or R L or R
Manual speed adjustment range 3333:1 (Qdos 20)
5000:1 (Qdos 30)
10000:1 (Qdos 60)
20000:1 (Qdos 120)
3333:1 (Qdos 20)
5000:1 (Qdos 30)
10000:1 (Qdos 60)
20000:1 (Qdos 120)
3333:1 (Qdos 20)
5000:1 (Qdos 30)
10000:1 (Qdos 60)
20000:1 (Qdos 120)
3333:1 (Qdos 20)
5000:1 (Qdos 30)
10000:1 (Qdos 60)
20000:1 (Qdos 120)
Minimum motor adjustment speed increment
(Dependent upon the operating mode and chosen flow unit)
0.006 0.078 0.100 0.003 0.003
4-20mA resolution 1600:1 1600:1 1600:1
Profibus speed resolution 550:1 (Qdos 20)
1250:1 (Qdos 30)
1250:1 Qdos 60
1400:1 (Qdos 120)
Run stop input
Run status output L
Alarm output L
Four configurable relay outputs R
Remote fluid recovery R R



PROFIBUS Manual Remote PROFIBUS Universal Universal+
Speed set point
Speed feedback
Flow calibration function
Hours run
Revolution counter
Leak detection
Low fluid level alarm
Diagnostic feedback



Security Manual Remote PROFIBUS Universal Universal+
Keypad lock
PIN lock to protect set up



*Control options - Universal and Universal+ models
Variant Standard pump (L) Relay Module (R)
Input 5–24V DC 5-24V DC or 110V AC
Output Open collector Contact rating 110V AC, 4A 30V DC, 4A

Literature

Brochures

  1. Food and Beverage overview (US).pdf
    PDF - 878.5kb
  2. Qdos range brochure (US).pdf
    PDF - 1.7mb
  3. Qdos Pod Flyer.pdf
    PDF - 286.2kb
  4. Mining Sector Brochure (US).pdf
    PDF - 776.9kb
  5. Qdos food flyer (US).pdf
    PDF - 296.1kb
  6. Tunnel boring (EN).pdf
    PDF - 1.8mb
  7. Water and wastewater industry (US).pdf
    PDF - 531.2kb
  8. Industrial overview (US).pdf
    PDF - 718.5kb
  9. Qdos CWT brochure (US).pdf
    PDF - 1.7mb
  10. Qdos hose connectors flyer (US).pdf
    PDF - 172.7kb

Datasheet

  1. Qdos 60 datasheet (US).pdf
    PDF - 1.6mb
  2. Qdos 30 datasheet (US).pdf
    PDF - 1.7mb
  3. Qdos 20 datasheet (US).pdf
    PDF - 1.7mb
  4. Qdos 120 datasheet (US).pdf
    PDF - 1.7mb
  5. Qdos CWT datasheet (US).pdf
    PDF - 1.6mb

Manuals

  1. Qdos Hose Kit manual (EN).pdf
    PDF - 1.8mb
  2. Qdos manual (EN).pdf
    PDF - 6.1mb
  3. Qdos Pod User Manual.pdf
    PDF - 5.3mb

Other Resources

  1. Engineering Specifications qdos 20-120 (US).zip
    ZIP - 1mb
  2. Engineering Specifications qdos CWT (US).zip
    ZIP - 688kb
  1. Qdos30_RH.stp
    STP - 30.6mb
  2. Qdos 30 LH.stp
    STP - 30.8mb
  1. PROFIBUS (GSD) Qdos 30,60,120 control file.gsd
    GSD - 2.6kb

Pumpheads

Reduced maintenance with single, no-tools, component replacement

Industry leading ReNu and CWT pumphead technology is at the core of the Qdos pump. This ensures the delivery of accurate and repeatable flow for fluids of wide ranging viscosities.

ReNu and CWT pumpheads provides accurate, linear and repeatable low pulse flow under varying process conditions.

Safe, no tools maintenance plus an integral leak detector which eliminates operator exposure to chemicals.

Qdos pumps can be ordered with the ReNu or CWT pumphead mounted on the left or right side of the pump.

Pumphead Tube material Max operating pressure Part number
ReNu 20

SEBS

Optimised for sodium hypochlorite applications with discharge pressure from 60 to 100 psi

Food-grade compliance: FDA regulations 21 CFR177.1680 and EC1935/2004, EU regulation 10/2011



7 bar 0M3.1800.PFP

PU

Optimised for polymers with discharge pressureup to 4 bar. Please see the chemical compatibility section for further information on suitability with other specific chemicals

Food-grade compliance: FDA regulations 21 CFR177.1680 and EC1935/2004, EU regulation 10/2011

4 bar 0M3.1500.PFP
ReNu 30

Santoprene

A general purpose pumphead with a high chemical compatibility across a range of applications

Food-grade compliance: FDA regulations 21 CFR177.1680

7 bar 0M3.2200.PFP

SEBS

Optimised for sodium hypochlorite, sulfuric acid and hydrogen peroxide applications with discharge pressure up to 4 bar. Please see the chemical compatibility section for further information on suitability with other specific chemicals

Food-grade compliance: FDA regulations 21 CFR177.1680 and EC1935/2004, EU regulation 10/2011

4 bar 0M3.2800.PFP
ReNu 60

Santoprene

A general purpose pumphead with a high chemical compatibility across a range of applications

Food-grade compliance: FDA regulations 21 CFR177.1680

7 bar 0M3.3200.PFP

SEBS

Optimised for sodium hypochlorite, sulfuric acid and hydrogen peroxide applications with discharge pressure up to 4 bar. Please see the chemical compatibility section for further information on suitability with other specific chemicals

Food-grade compliance: FDA regulations 21 CFR177.1680 and EC1935/2004, EU regulation 10/2011

4 bar 0M3.3800.PFP

PU

Optimised for polymers with discharge pressure up to 5 bar. Please see the chemical compatibility section for further information on suitability with other specific chemicals.

Food-grade compliance: FDA regulations 21 CFR177.1680 and EC1935/2004, EU regulation 10/2011

5 bar 0M3.3500.PFP
ReNu 120

Santoprene

A general purpose pumphead with a high chemical compatibility across a range of applications

4 bar 0M3.4200.PFP
CWT30 EPDM

EPDM and PEEK fluid contact element

A general purpose pumphead with a high chemical compatibility across a range of applications

9 bar 0M3.5700.PFP

Accessories

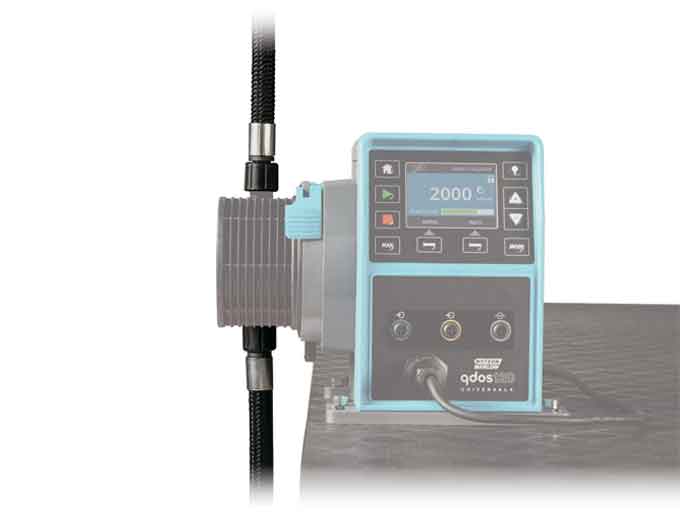

Qdos hose connector kit

Qdos hose kit

Qdos hose connector kit offers flexible, kink resistant and robust hoses which have been designed especially for the Qdos chemical dosing pump range.  The chemically resistant polytetrafluoroethylene (PTFE) hose, when used in combination with a Qdos dosing pump, provides a simple, safer and secure connection.

Videos

Order Information

Product codes

Qdos 20 product codes

Description Partcode
ReNu 20 pumphead PU / PFPE 4 bar (60psi) 0M3.1500.PFP
ReNu 20 pumphead SEBS / PFPE 7 bar (100psi) 0M3.1800.PFP



Qdos 30 product codes

Description Partcode
ReNu 30 pumphead Santoprene / PFPE 7 bar (100psi) 0M3.2200.PFP
ReNu 30 pumphead SEBS / PFPE 4 bar (60psi) 0M3.2800.PFP



Qdos 60 product codes

Description Partcode
ReNu 60 pumphead Santoprene / PFPE 7 bar (100psi) 0M3.3200.PFP
ReNu 60 pumphead SEBS / PFPE 4 bar (60psi) 0M3.3800.PFP
ReNu 60 pumphead PU 5 bar (70psi) 0M3.3500.PFP



Qdos 120 product codes

Description Partcode
ReNu 120 pumphead Santoprene / PFPE 4 bar (60psi) 0M3.4200.PFP



Qdos CWT product codes

Description Partcode
CWT 30 pumphead EPDM/PEEK/PFPE 9 bar (130 psi) 0M3.5700.PFP



Case studies

Recommended Products

  1. Qdos Hose Connector Kits

    Qdos Hose Connector Kits

    Qdos hose connector kits are flexible and robust hoses designed for simple safer and secure connection of a Qdos chemical metering pump into an existing process line

    Flexible hose assemblies

Related Products

  1. 100 series cased pump

    100 series cased pump

    Flow rates to 3.04 GPH (190 ml/min) and pressures up to 30 psi. Speed control up to 10,000:1.

    Pumps - cased pumps

  2. 300 series cased pump

    300 series cased pump

    Flow rates from 2 μl/min to 2000 ml/min and pressures up to 30 psi. Single or multi channel.

    Pumps - cased pumps

  3. 530 process pumps

    530 process pumps

    Flow rates to 55 GPH (3.5 L/min) and pressures up to 100 psi. Precise 2200:1 speed control range.

    Pumps - cased pumps

  4. 630 mid-flow process pumps

    630 mid-flow process pumps

    Flow rates to 4.76 GPM (18 L/min) and pressures up to 60 psi. Precise 2650:1 speed control range.

    Pumps - cased pumps

  5. 730 process pumps

    730 process pumps

    Flow rates to 8.8 GPM (33 L/min) and pressures up to 30 psi. Precise 3600:1 speed control range.

    Pumps - cased pumps

Our process pump specialists are here to help you succeed.

To order a product or ask a question

Contact our experts
