Overview

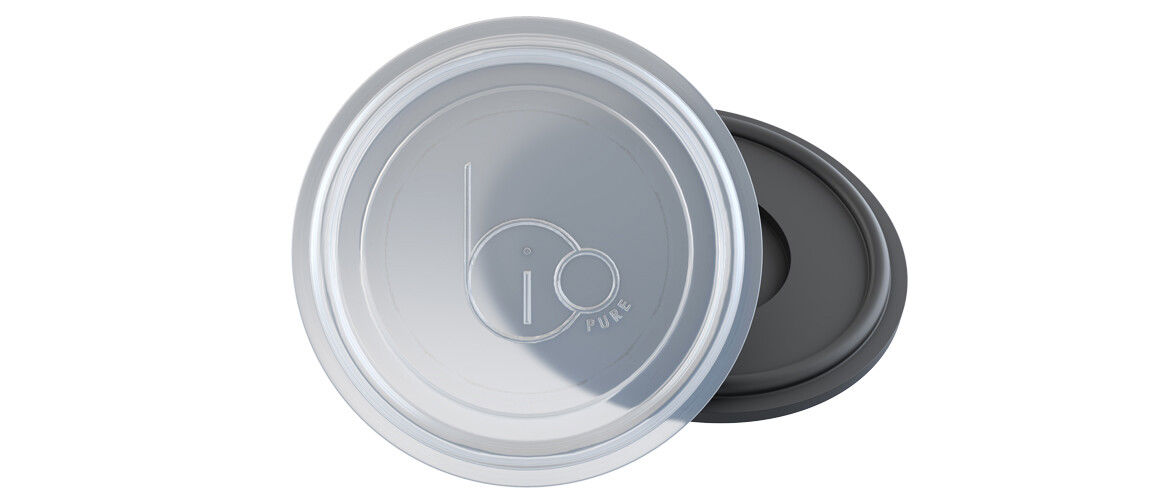

Gauge guard

Protect the faces of your gauges to stop corrosion without sacrificing gauge performance. Sizes from ½” through 1 ½” can be placed on the face of your gauge so that caustic and acidic fluids won’t come into contact with the gauge diaphragm. A thin membrane is moulded in place, favouring one side of the gasket ring so that the membrane is flush with the gauge face.

Features and benefits

Available in silicone or EPDM
USP Class VI compliant and Animal Derived Component Free (ADCF)
Compliant with FDA regulations CFR 21 177.2600
Lot numbering enables product traceability
Irradiated EPDM gaskets available on request

Technical summary

Gasket type	Isolator
Certification and compliance	ADCF, ISO Class 7, USP Class VI
Shelf life	5 years
Gamma stability	Max 50 kGy

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Specifications

Technical specifications

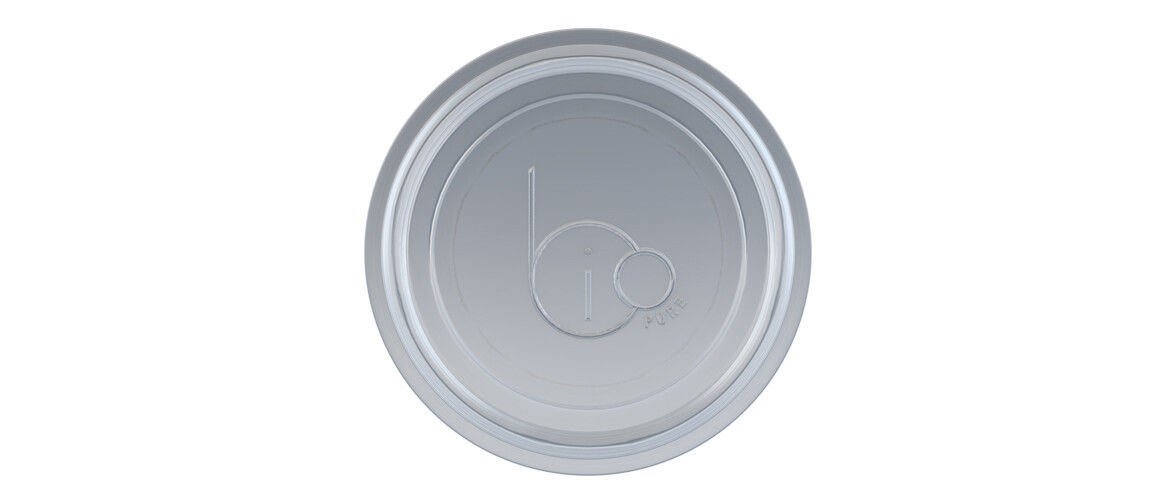

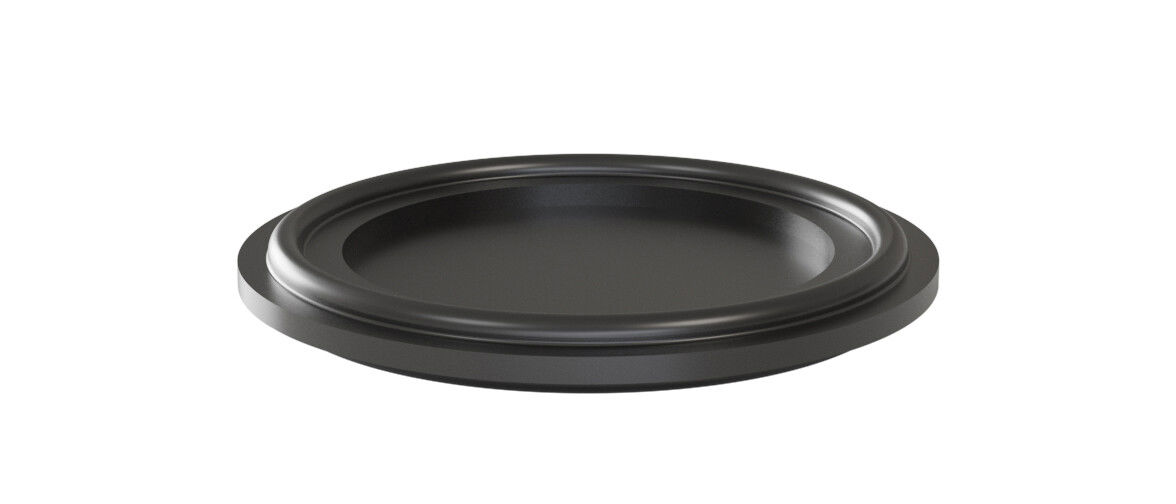

	Silicone RXPX Gauge Guard	EPDM Gauge Guards
Gasket type	Isolator	Isolator

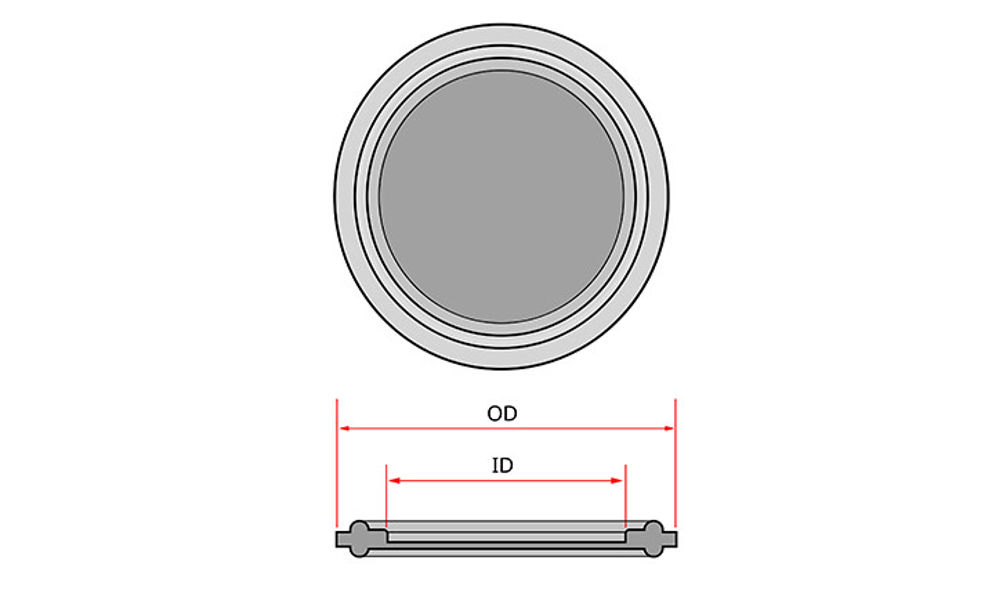

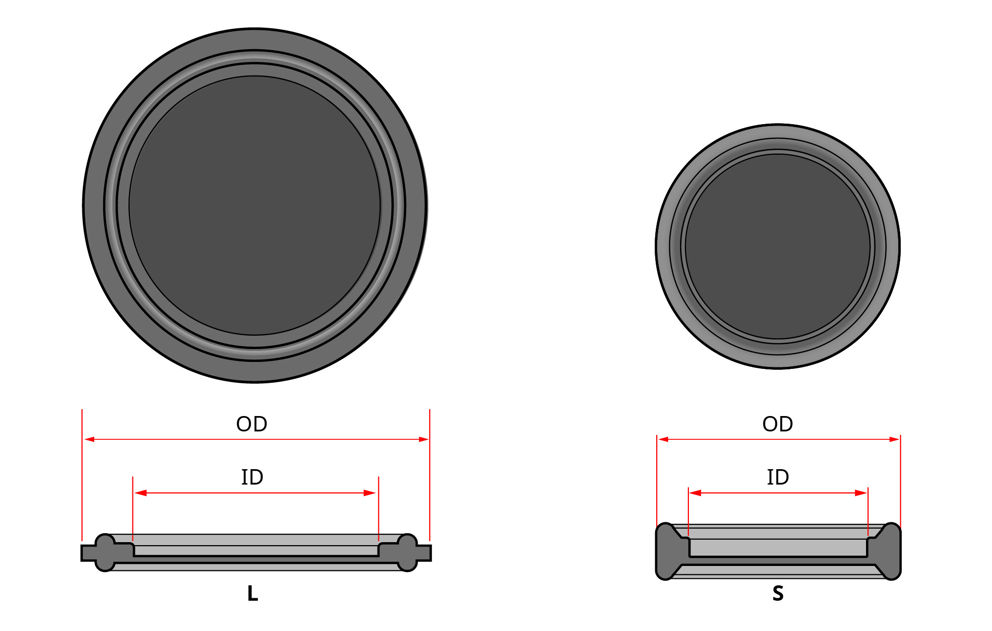

Internal diameter	35.56 mm (1.4 in)	9.65 - 35.56 mm (0.38 - 1.4 in)
External diameter	50.29 mm (1.98 in)	21.59 - 50.29 mm (0.85 - 1.98 in)
Size	1.5 in	0.5, 0.75, 1, 1.5 in
Quantity	25 PCS	25 PCS
Certification and compliance	ADCF, ISO Class 7, USP Class VI	ADCF, USP Class VI
Operating temperature	-55 °C to 210 °C (-67 °F to 410 °F)	-57 °C to 154 °C (-70 °F to 310 °F)
Shelf life	5 years	5 years
Gamma stability	Max 50 kGy
