Fluid path - gaskets

EPDM gaskets

Overview

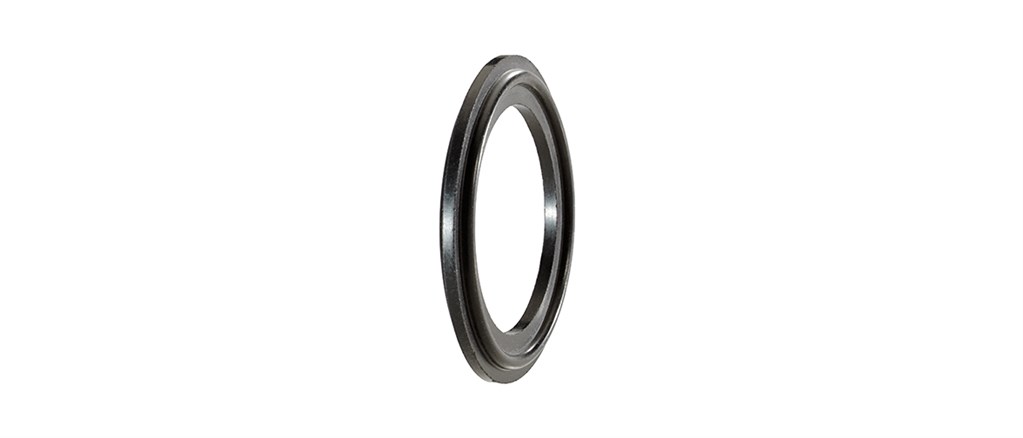

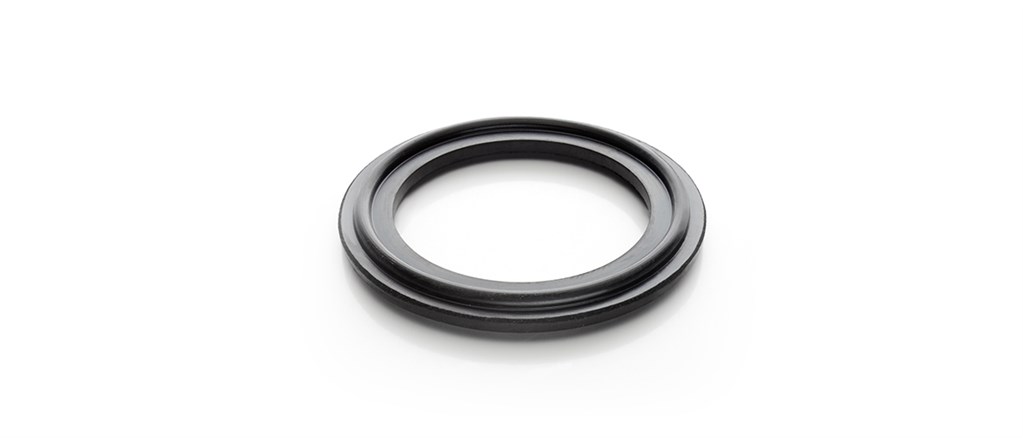

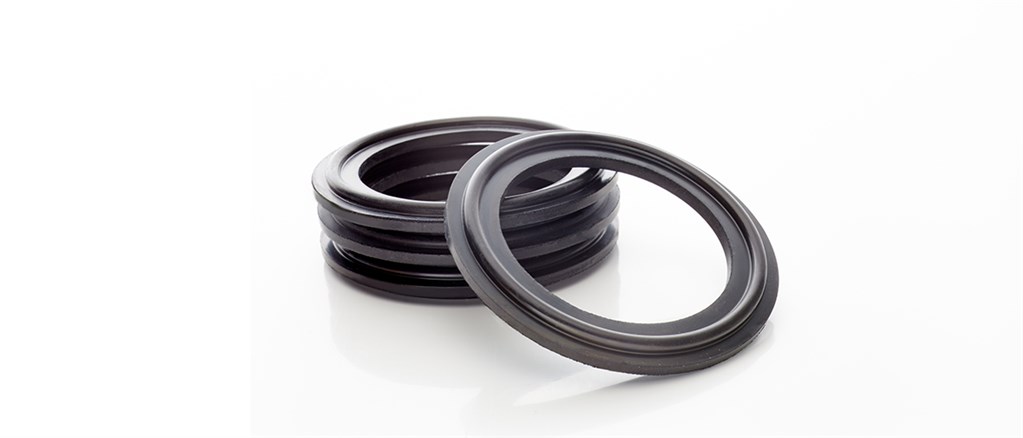

EPDM gaskets

(ethylene propylene diene monomer)

EPDM gaskets offer quality performances in sanitary applications with repetitive steam-in-place (SIP) cycles. These sanitary gaskets have been designed to achieve a smooth bore, contamination free fluid path under clamping compression, retaining their geometric stability after repeat SIP cycles. This ensures that your SIP validation is not compromised.

Additionally, EPDM gaskets do not deform to trap bacteria, or stick, causing the gasket to adhere to a ferrule face. The EPDM material maintains the important conditions of clean, intact removal with no trace of elastomer material finding its way into the fluid process.

Features and benefits

  • Designed in accordance with ASME-BPE standards
  • USP Class VI compliant and animal derived component free (ADCF)
  • Compliant with FDA regulations CFR 21 177.2600
  • Lot numbering enables product traceability
  • Superior steam-in-place (SIP) stability with consequent clean ferrule and gasket separation

Technical summary

Gasket typeUnflanged
Certification and complianceADCF, USP Class VI
Shelf life5 years

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Specifications

Technical specifications

Small EPDM GasketsStandard EPDM Gaskets
Gasket typeUnflanged Unflanged
Internal diameter10.9 - 16 mm22.9 - 147.8 mm
Internal diameter0.43 - 0.63 in0.9 - 5.82 in
External diameter21.6 mm50.3 - 165.4 mm
External diameter0.85 in1.98 - 6.51 in
Size0.5, 0.75 in1, 1.5, 2, 2.5, 3, 4, 6 in
Quantity25 PCS25 PCS
Certification and complianceADCF, USP Class VI ADCF, USP Class VI
Operating temperature range 21 °C to 154 °C21 °C to 154 °C
Operating temperature range -70 °F to 310 °F-70 °F to 310 °F
Shelf life5 years5 years

Materials of construction

MaterialEPDM

Literature

Brochures

  1. BioPure overview (EN).pdf
    PDF - 863.8kb

Datasheet

  1. Small EPDM Gaskets datasheet (EN).pdf
    PDF - 522.8kb
  2. Standard EPDM Gaskets datasheet (EN).pdf
    PDF - 529.1kb

Order Information

Product codes

Small EPDM Gaskets product codes

Part number Size inch I.D (B) inch (mm) O.D (A) inch (mm) Quantity
42MPE-050-25 1/2 0.43 (10.9) 0.85 (21.6) 25
42MPE-075-25 3/4 0.63 (16.0) 0.85 (21.6) 25

Standard EPDM Gaskets product codes

Part number Size inch I.D (B) inch (mm) O.D (A) inch (mm) Quantity
40MPE-100-25 1 0.90 (22.9) 1.98 (50.3) 25
40MPE-150-25 1 1/2 1.40 (35.6) 1.98 (50.3) 25
40MPE-200-25 2 1.90 (48.3) 2.52 (64.0) 25
40MPE-250-25 2 1/2 2.40 (61.0) 3.05 (77.5) 25
40MPE-300-25 3 2.90 (73.7) 3.58 (90.9) 25
40MPE-400-25 4 3.87 (98.3) 4.68 (118.9) 25
40MOE-600-25 6 5.82 (147.8) 6.51 (165.4) 25
